Fotric TD2e kit acoustic camera
Details
The Fotric TD2e is an acoustic camera that helps you detect and visualise sound sources ranging from 2kHz to 100kHz in various environments. Compared to its competitors, the TD2e gives you a versatile tool for a substantially lower price. The TD2e builds on the success of the TD2, and has improved in the following aspects:
- Better localisation, thanks to an improved microphone design
- Improved noise surpression
- The introduction of Peak mode: allowing you to quickly identify the sound's frequency
- Quick start-up of only 1 second
You can use the device to identify leaks, mechanical issues, and other sound-related problems in industrial settings. With 64 digital microphones, the TD2e captures sound waves, locates the source, and converts them into visual images with the 5 MP camera. This combination of the microphones and the camera enables you to quickly locate and analyse sound sources. For example, the TD2e can detect an air leakage as small as 0.01L/min at 0.1MPa from 1.5 meter distance. It also has a 5000mAh rechargeable battery that provides up to 3 hours of continuous use, and you can recharge it via the USB-C port.
The TD2e is perfect in applications where you simply want to identify the source of a leakage, without further details on the size- and estimated costs of the leakage. If these parameters are important for you, or you need to create leakage reports, the H4mini is the better fit for you.
Curious if the TD2e is the right solution for your application?
Rent the camera temporarily and discover the possibilities of the TD2e yourself.
Contact us here to discuss the rental options.
Specifications
| Microphones | 64 MEMS digital microphones |
| Detection range | 0.3 - 60 m |
| Frequency range | 2 kHz - 100 kHz |
| FOV | 58° × 45° |
| Resolution | 5 MP |
| Sample rate | 200 kHz |
| Image modes | Single-source mode, multi-source mode |
| Display | 3.5" IPS LCD touchscreen (640 x 480 pixels) |
| Connectivity | USB-C |
| Battery | 5000 mAh , 3 hours of continuous use |
| Dimensions | 243 x 95 x 150 mm |
| Weight | 770 g |
Accessories

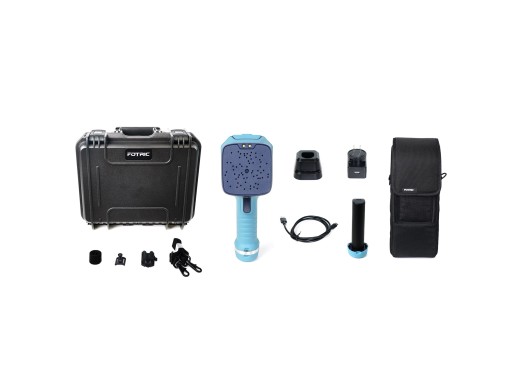

Eleshop sells the performance version of the TD2e, which is a complete kit consisting of:
- Hard case carrying bag
- Soft carrying bag
- A total of 2 batteries, for extended usage of the camera
- Tool holster
- Extended warranty up to 18 months
- USB to USB-C cable
- Charging dock
- EU power adapter
- 32GB SD card
Downloads
| Fotric TD2e kit catalog |  (2.14 MB) | Download |
| Fotric TD2e kit user manual | (780.5 KB) | Download |
