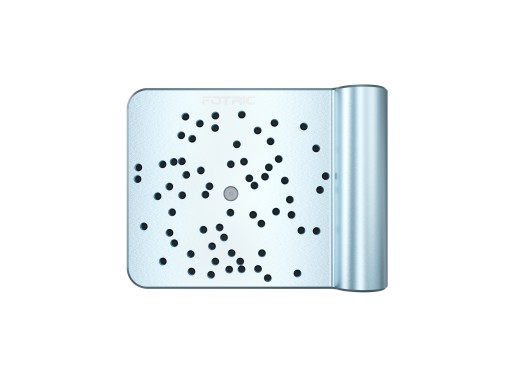

Fotric TD2eGeek acoustic camera (Android)
Details
The Fotric TD2eGeek acoustic camera for Android is a light and compact portable acoustic camera which can be connected to your Android phone using USB-C. The acoustic camera features 64 microphone channels for a 2-100kHz frequency range. The TD2eGeek is a plug-in device with a separate battery, allowing for continuous operation of up to 4 hours. This compact acoustic camera is a more portable option to use than the TD2e. The TD2eGeek is purely intended for visual inspection.
The TD2eGeek is perfect in applications where you simply want to identify the source of a leakage, without further details on the size and estimated costs of the leakage. If these parameters are important for you, or you need to create leakage reports, the H4mini is the better fit for you.
Specifications
| Microphones | 64 MEMS digital microphones |
| Camera | 5MP industrial-grade digital camera |
| Detection range | 0.3 - 60 m |
| Frequency range | 2 kHz - 100 kHz |
| Acoustic refresh rate | 15 Hz |
| FOV | 58° × 45° |
| Resolution | 5 MP |
| Sample rate | 200 kHz |
| Image modes | Single-source mode, multi-source, all-source |
| Connectivity | USB-C, USB 2.0 |
| Battery | 3200 mAh, 4 hours of continuous use |
| Dimensions | 101 x 77 x 22 mm |
| Weight | 200 g |
Accessories
The TD2eGeek comes by default with:
- USB-C cable
- Magnetic ring
- Ergonomic handle
- Soft bag
Pros and cons
- 4-hour battery life
- Lightweight & compact
- Only compatible with Android
- Only for visual inspection
Downloads
| Fotric TD2e geek datasheet |  (94.4 KB) | Download |
| Fotric TD2e geek catalog | (3.24 MB) | Download |
| Fotric TD2eGeek quick start guide | (1.27 MB) | Download |
| Fotric TD2eGeek user manual | (760.61 KB) | Download |
