32.95 €32.95 Excl. VAT
Loading stock info
  •
Product number: ELE010220

Be the first to review this product

Details

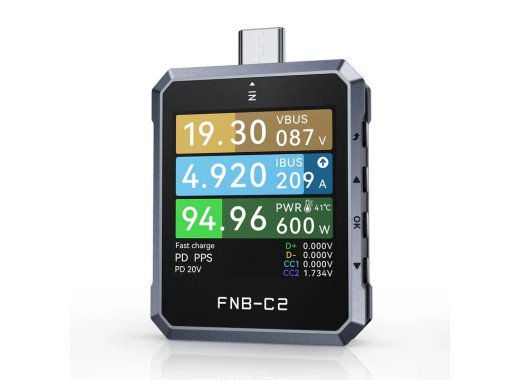

The Fnirsi FNB-C2 is a compact USB-C tester for chargers, power banks, and cables. The tester has PD3.1 EPR support, which allows it to read power up to 240W and voltage up to 50V. The unit also automatically detects and triggers most fast-charging protocols. A 20-bit ADC chip enables readouts with a 7-digit resolution.

Additionally, the tester reads a cable's E-Marker chip to show, among other things, its type, power, and speed. PD monitoring captures the protocol negotiation between charger and load, which helps troubleshoot compatibility issues. Furthermore, the unit features ripple testing and a real-time waveform interface that plots voltage and current. The tester can also record voltage and current curves for up to 9 hours and estimate the real capacity of batteries. The FNB-C2 is a versatile tool for anyone who works with USB-C devices, from charger checks to repair and diagnostics. All readings appear on a 1.54" display that rotates automatically.

Specifications

Voltage range4 - 50 V
Current range0 - 6.5 A
Power range0 - 240 W
Voltage resolution1 µV
Current resolution1 µA
Power resolution1 µW
D+/D− voltage range0 - 3.3 V
CC1/CC2 voltage range0 - 3.3 V
Display1.54" TFT-LCD
Recording timeUp to 9 hours

Pros and cons

  • Supports PD3.1 EPR up to 240W
  • 7-digit resolution
  • No Bluetooth
