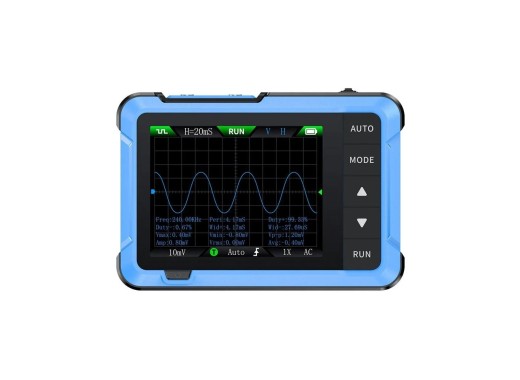

The Fnirsi DSO510 handheld oscilloscope and function generator in one, perfectly suited if you only want to spot whether there is a signal and its rough shape. The small form factor makes this device ideal for fieldwork where no precise measurements are needed. If you want to see exact details or do actual measurements, this is not the device.
The oscilloscope has 1 channel, a bandwidth of 10MHz and a sample rate of 48MS/s.
It can measure a voltage range of up to 400V with the included probe.
The function generator has a single channel, an adjustable frequency range of 0-50kHz and an adjustable amplitude between 0.1-3.0V.
The function generator can also output 13 different waveforms, including sine, rectangular and sawtooth waves.
The DSO510 also has a 2.8" HD LCD display.
Finally, the DSO510 has a 1000mAh battery, allowing for up to 4 hours of use on a single charge.
Specifications
Oscilloscope
| Bandwidth | 10 MHz |
| Channels | 1 |
| Sample rate | 48 MS/s |
| Vertical scale | 10 mV/div - 20 V/div |
| Display | 2.8" LCD (320x240) |
| Battery | Up to 4 hours |
| Dimensions | 99 x 68.3 x 19.5 mm |
| Weight | 104 g |
Function generator
| Bandwidth | 0 - 50 kHz |
| Channels | 1 |
| Sample rate | 5 MS/s |
| Amplitude range | 0.1 - 3.0 V |
| Built-in functions | Sine, Rectangular, Sawtooth, Half, Full, Step, Anti-step, Noise, Exponential rise, Exponential drop, DC, Multi-audio, Sink pulse, Lorentz |
Accessories
- 1x Alligator clip probe
- 1x USB-C charging cable
- 1x P6100 high voltage probe (100 MHz, 1x/10x)
- 1x Female BNC to male MCX adapter
- 1x Carying cord
Pros and cons
- Portable power delivery with USB-C
- Not suitable for precise measurements
- Loose probe connection
