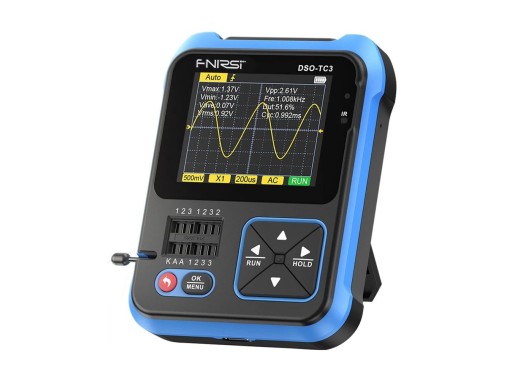

Fnirsi DSO-TC3 multitester and oscilloscope
Details
The Fnirsi DSO-TC3 is both a multitester and a digital oscilloscope. The multitester includes an electronic component tester, signal generator, continuity test, voltage test, temperature and humidity measurement and infrared decoding. The DSO-TC3 is small and easy to carry and can be used for power measurements and repairs. The DSO-TC3 has a built-in battery of 1500 mAh with which you can use the device for 6 hours and it can be charged with a USB-C charger. Also, this multitester has a MCX connector and a 2.4" TFT color display.
Oscilloscope
The oscilloscope has a real-time sample frequency of 10MSa/s and a bandwidth of 500kHz. It has a test voltage range of 400V AC/DC with the included probe and has a trigger function. The measured waveform can be displayed on the 2.4" screen without adjustments.
Multitester
The multitester can test many different components, such as resistors, capacitors, coils and transistors. It has 6 different major waveforms, the square wave, triangle wave, pulse wave, sine wave, ramp wave and DC. The DSO-TC3 has an adjustable output frequency of 1-100kHz and an adjustable voltage of 3.3V.
Specifications
| Bandwidth | 500 kHz |
| Channels | 1 |
| Output signals | Square, triangle, pulse, sine, ramp and DC |
| Sample rate | 10 MSa/s |
| Vertical scale | 10 mV/div - 10 V/div |
| Horizontal scale | 1 μs/div - 10 s/div |
| Trigger mode | Auto / Normal / Single |
| Resistor | 0.01 Ω - 50 MΩ |
| Capacitor | 5 pF - 100 mF |
| Inductor | 10 μH - 1000 mH |
| Battery | 0.1 V - 4.5 V |
| Input voltage | 0 V - 40 V |
| Display | 2.4" TFT color |
| Dimensions | 103 x 79 x 31 mm |
| Weight | 128 g |
Accessories
- 1x DSO-TC3
- 1x P6100 oscilloscope probe
- 3x testclamps
- 1x USB-C cable
Downloads
| Fnirsi DSO-TC3 product manual |  (99.34 MB) | Download |
