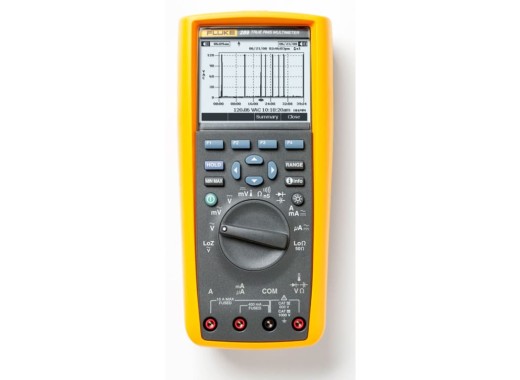

Fluke 289 digital multimeter calibrated
Details
The Fluke 289 is a True-RMS electronic multimeter with unique logging and TrendCapture capabilities. It quickly documents design performance and displays it graphically, making it no longer necessary to export a maximum of 10 000 logged readings to a PC to find a trend or outliers. The Fluke 289 combines more accuracy and convenience in a handheld multimeter than ever before.
For example, the Fluke possesses a real-time clock for indicating the elapsed time and time stamps for saved measurements. It also possesses a smoothing function that helps in accurately reading a noisy and fast-changing input signal. The Fluke 289 is more accurate than the other fluke multimeters of this series, due to its low impedance voltage against ghost voltages and low pass filter for accurate voltage and frequency readings. The multimeter has two terminal 50Ω range with 1mΩ resolution. Although this meter works completely stand-alone, it can also be connected to a PC with the optional IR3000 connector.
Model overview
| Model | Fluke 287 | Fluke 289 |
|---|---|---|
| Low pass filter | No |
Yes |
| Low impedance | No |
Yes |
| Low-ohms range | No |
50 Ω, 1 mΩ resolution, 10 mA source |
| Price |
Specifications
| Max. DC voltage | 1000 V, ±(0.025% + 2 digits) |
| Max. AC voltage true-RMS | 1000 V, 20 Hz - 100 KHz ±(0.3% + 25 digits) |
| Max. DC current | 10 A (20 A: 30 sec max), ±(0.05% + 10 digits) |
| Max. AC current true-RMS | 10 A (20 A: 30 sec max), 20 Hz - 100 KHz ±(0.6% + 5 digits) |
| Max. Resistance | 500 MΩ, ±(0.005% + 5 digits) |
| Max. Capacitance | 100 mF, ±(1% + 5 digits) |
| Frequency range | 0.001 Hz - 999.99 KHz, ±(1% + 5 digits) |
| Temperature range | -200 °C to +1350 °C, ±(1% + 10 digits) |
| Input impedance | 10 MΩ, <100 pF |
| Auto range | Yes |
| Display | 1/4" VGA-display with backlight |
| Counts | 50 000 |
| Dimensions | 222 x 102 x 60 mm |
| Weight | 870.9 g |
Calibrated version
| Fluke 289 - calibrated | On this page you can order the calibrated version of the Fluke 289. This meter comes with an official calibration certificate. |
Accessories
The Fluke 289 multimeter comes with:
- 1 x TL71 silicone test leads
- 1 x AC175 alligator clips
- 6 x AA batteries
Pros and cons
- Low impedance
- Low pass filter
- Lifetime warranty
- Calibrated
Downloads
| Fluke 289 datasheet |  (452.33 KB) | Download |
| Fluke 289 user manual | (2.05 MB) | Download |
