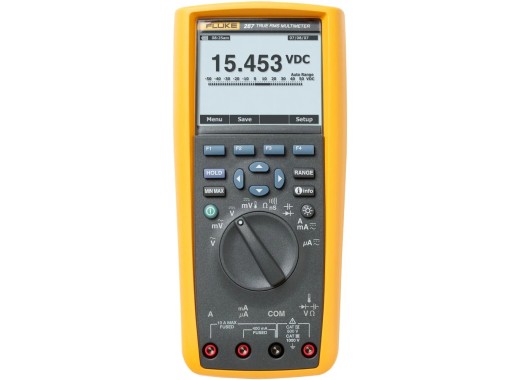

The Fluke 287 is a True-RMS electronic multimeter with unique logging and TrendCapture capabilities. It quickly documents design performance and displays it graphically, making it no longer necessary to export a maximum of 10 000 logged readings to a PC to find a trend or outliers. The Fluke 287 combines more accuracy and convenience in a handheld multimeter than ever before. For example, the Fluke possesses a real-time clock for indicating the elapsed time and time stamps for saved measurements. It also possesses a smoothing function that helps in accurately reading a noisy and fast-changing input signal. Although this meter works completely stand-alone, it can also be connected to a PC with the optional IR3000 connector.
Specifications
| Range and accuracies |
|
| Specifications | Range | Best achievable accuracy |
| Max. DC voltage (V) | 1000 V | ±(0.025% + 2 digits) |
| Max. AC voltage (V) true-RMS | 1000 V | 20 Hz - 100 KHz ±(0.3% + 25 digits) |
| Max. DC current (A) | 10 A | ±(0.05% + 10 digits) |
| Max. AC current (A) true-RMS | 10 A | 20 Hz - 100 KHz ±(0.6% + 5 digits) |
| (AC/DC current 20A: 30 sec max) | |
| Max. Resistance (Ω) | 500 MΩ | ±(0.005% + 5 digits) |
| Max. Capacitance (F) | 100 mF | ±(1% + 5 digits) |
| Frequency range | 0.001 Hz - 999.99 KHz | ±(1% + 5 digits) |
| Temperature range | -200 °C to +1350 °C | ±(1% + 10 digits) |
|
| Input impedance | 10 MΩ, <100 pF |
| Auto range | |
| Display | 1/4" VGA-display with backlight |
| Counts | 50 000 |
| Dimensions | 222 x 102 x 60 mm |
| Weight | 870.9 g |
Accessories
The Fluke 287 multimeter comes with:
- 1 x TL71 silicone test leads
- 1 x AC175 alligator clips
- 6 x AA batteries
Pros and cons
- Low impedance mode
- Conductivity measurement
