938 €938.00 Excl. VAT
Loading stock info
  •
Product number: ELE007579

Be the first to review this product

Details

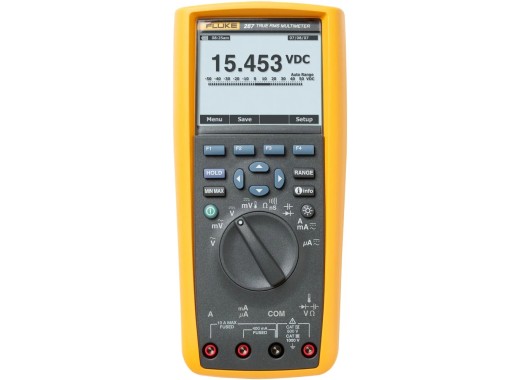

The Fluke 287 CAL is a calibrated True-RMS electronic multimeter with unique logging and TrendCapture capabilities. It quickly documents design performance and displays it graphically, making it no longer necessary to export a maximum of 10 000 logged readings to a PC to find a trend or outliers. The Fluke 287 combines more accuracy and convenience in a handheld multimeter than ever before.

For example, the Fluke possesses a real-time clock for indicating the elapsed time and time stamps for saved measurements. It also possesses a smoothing function that helps in accurately reading a noisy and fast-changing input signal. Although this meter works completely stand-alone, it can also be connected to a PC with the optional IR3000 connector.

Specifications

Range and accuracies
SpecificationsRangeBest achievable accuracy
Max. DC voltage (V)1000 V±(0.025% + 2 digits)
Max. AC voltage (V) true-RMS1000 V20 Hz - 100 KHz ±(0.3% + 25 digits)
Max. DC current (A)10 A±(0.05% + 10 digits)
Max. AC current (A) true-RMS10 A20 Hz - 100 KHz ±(0.6% + 5 digits)
(AC/DC current 20A: 30 sec max)
Max. Resistance (Ω)500 MΩ±(0.005% + 5 digits)
Max. Capacitance (F)100 mF±(1% + 5 digits)
Frequency range0.001 Hz - 999.99 KHz±(1% + 5 digits)
Temperature range-200 °C to +1350 °C ±(1% + 10 digits)
Input impedance10 MΩ, <100 pF
Auto range
Display1/4" VGA-display with backlight
Counts50 000
Dimensions222 x 102 x 60 mm
Weight870.9 g

Accessories

The Fluke 287 CAL multimeter comes with:

  • 1 x TL71 silicone test leads
  • 1 x AC175 alligator clips
  • 6 x AA batteries

Pros and cons

  • Low impedance mode
  • Conductivity measurement
