Product number: ELE004763

Be the first to review this product

Details

Tip from our expert:
Unsure if you need the calibrated version of this product? Then please read this article to make the right consideration.

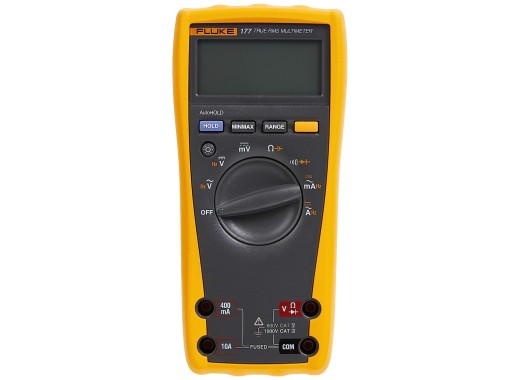

The Fluke 177 is a rugged digital handmultimeter with a 6000 count display and a basic accuracy of 0.09%. Besides the standard and true RMS functions for measuring volts, ohms and amperes, also capacity and frequency measurements can be made. Furthermore, there is a diode test function and it is possible to check continuity. In addition to the numerical display, the underside of the display is equipped with a analogue graph also shows the measured value.
This meter has Display Hold and Auto Hold functions and is capable of Min/Max/Average registration. This meter also flattens the measurements so that rapidly fluctuating signals can be read more stable.
At the back of the meter there is a folding stand and the display is large and easy to read. The FLuke 177 uses a 9V block battery, with which you can use it for about 200 hours. Furthermore, this meter falls in the measurement category CAT IV to 600V and CAT III to 1000V.

Specifications

Max. DC voltage (max. resolution)1000 V (0.1 mV)
Accuracy 0.09%+2
Max. AC (max. resolution)1000 V (0.1 mV)
Accuracy 1.0%+3
Max. DC current (max. resolution)10 A (0.01 mA)
Accuracy 1.0%+3
Max. AC current (max. resolution)10 A (0.01 mA)
Accuracy 1.5%+3
Max. resistance (max. resolution)50 MΩ (0.1 Ω)
Accuracy 0.9%+1
Max. capacitance (max. resolution)10,000 μF (1 nF)
Accuracy 1.2%+2
Max. frequency (max. resolution)100 kHz (0.01 Hz)
Accuracy 0.1%+1
Other measurementsContinuity- and diode test
True-RMS Yes
Display 3 1/2 digits, 6000 counts
Battery 9 volt (±200 uur working time)
Input security 1000 V CAT III, 600 V CAT IV
Dimensions 43 x 90 x 185 mm
Weight 420 g

More information can be found here under the datasheet and manual of the Fluke 177.

Accessories

  • 9V battery
  • TL75 measurement cables
  • Manual

Downloads
