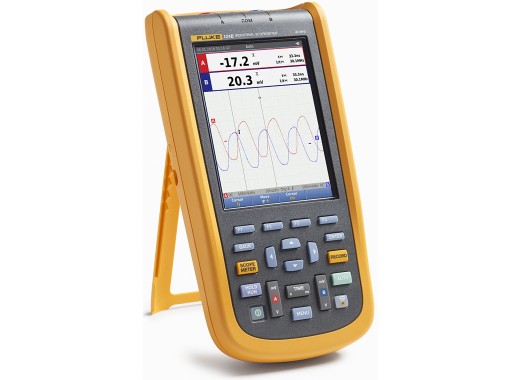

Fluke 124B/EU/S handheld scope meter

This Fluke 124B/EU/S handheld scope meter is a tool that combines a two-channel digital oscilloscope, two digital true-RMS multimeters, and a two-channel recorder in one instrument. The oscilloscope has a 40 MHz bandwidth and the multimeters have 5000 counts. Moreover, the Fluke 124B is specifically designed for technicians who need to troubleshoot and maintain electrical, electromechanical, and industrial systems. It is an extremely robust device that can withstand vibrations up to 3 g and shocks up to 30 g, with an IP51 protection class according to EN/IEC60529. With a battery life of up to 7 hours, it is an ideal tool for fieldwork. In addition to its durability, the Fluke 124B can also be integrated with the Fluke Connect Mobile App and FlukeView software, allowing for easy analysis and storage of testing data. The Connect-and-View triggering feature enables hands-free control when using the app.

Accessories

The Fluke 124B/EU/S comes by default with:

• Li-Ion battery pack
• Charger/power adapter
• 2 shielded test leads with ground leads
• Black test lead
• Red and blue hook clips
• Banana to BNC adapter
• WiFi USB adapter
• Soft carry case
• Flukeview for Windows software
• Magnetic hanger
• Screen protector

Downloads

Fluke 120B Series

(2.82 MB)

Download
