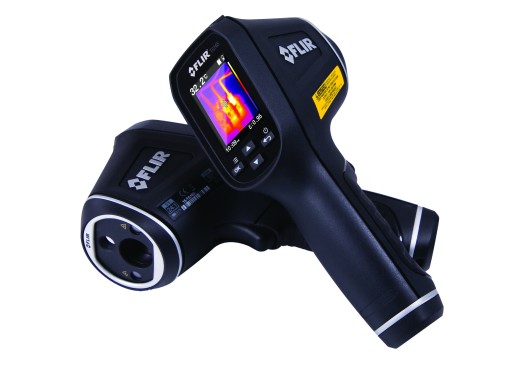

Flir TG165 thermal imaging camera
Details
The very affordable Flir TG165 thermal imaging camera offers a significant improvement over normal spot IR thermometers. This thermal imager offers reliable and affordable results. Equipped with the FLIR Lepton thermal camera chip, it is possible to accurately measure from relatively large distances. With the spot thermometer, the temperature values can be read quickly. The TG165 makes heat problems visual.
It is possible to store photos taken with the thermal sensor on the included micro-SD card. Easy to use and very solid, the TG165 is built to survive a fall of 2 meters. With the trigger at the front of the handle, the 2 lasers can be activated, making it easy to see what is being aimed at. In addition, it is possible to mount the TG165 on a tripod by the built-in mount screw.
Specifications
| IR thermometer | |
| Range | -25 to 380 °C |
| Precision | ± 1.5 °C |
| Resolution | 0.1 °C |
| Response time | 150 mS |
| Heat camera | |
| Cameratype | FLIR Lepton Mircobolometer |
| Image resolution | 4800 Px (80x60 Px) |
| Temperature limit | 127 °C |
| Update rate | 9 Hz |
| General | |
| Display | 2" LCD (176x220 Px) |
| Battery | 2600 mAh (max 8 hours) |
| Dimensions | 186 x 55 x 94 mm (HxWxD) |
For more information you can consult the brochure.
Accessories
The Tg165 comes with the following accessories
- 8 GB micro-SD card
- USB cable
- Charger
- Wristband
- Technical documentation
