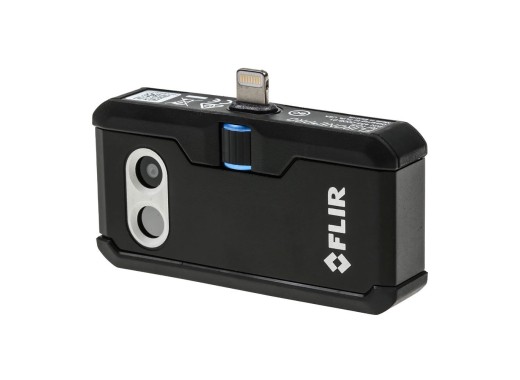

Flir One Pro iOS
Details
Turn your iPhone into a true Flir thermal imaging camera.
Because you always have your smartphone in your pocket, you can use the conveniences of thermography anywhere! The FLIR ONE combines thermal images with visual images with the patented MSX technology. This makes it possible to keep seeing physical details, leaving individual parts visible. An example of this can be seen in the second image.
The FLIR ONE contains the revolutionary non-refrigerated LWIR (long wave infrared) FLIR Lepton microbolometer. A super small infrared module, even smaller than a eurocent! The Lepton can measure temperatures from -20° to 400°C, and has a resolution of 160 x 120 pixels.
With the Flir One it is possible to look in the dark, through smoke and even through some materials. Thermal pictures or videos taken appear in the gallery and can then be used as normal smartphone photos, easily shared or uploaded. With the accompanying apps many treatments and functionalities become possible. It is also possible to create your own apps with the SDK.
The FLIR ONE has a built-in battery and therefore uses no power from the iPhone.
A new function is the connector to be unscrewed. This allows the meter to be used even when the phone is in a case.
Specifications
| Compatibility | iPhone 6, 7, 8, X, 11, iPad* (Mini) |
| Camera | FLIR Lepton VGA (for MSX) |
| NETD | 150 mK |
| Temperature range | -20 - 400 °C |
| Battery capacity | 350 mAh |
| Connectors | Apple lightning connector, USB-C (only power supply) |
| Dimensions | 68 × 34 × 14 mm (LxWxD) |
| Weight | 36.5 grams |
*The latest generation iPad Pro is not compatible because it is equipped with a USB-C connector instead of a Lightning connector.
For more information you can consult the datasheet below, in addition here an overview can be found of apps that work together with the FLIR ONE.
Accessories
The Flir One comes with the following accessories
- Micro USB charger (1 A)
- Quick-start guide
Downloads
| Flir One Pro Datasheet |  (402.49 KB) | Download |
