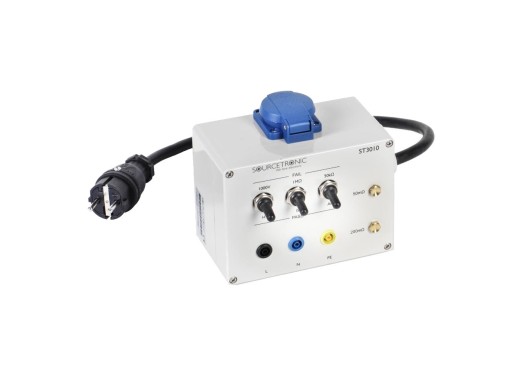

The Sourcetronic ST3010 test dummy can be used with all standard devices and test systems. In particular, the test dummy can be used with Hi-Pot testers to simulate faults, helping to verify that your Hi-Pot tester is working as intended. The device is capable of performing high-voltage, insulation resistance, leakage current, and protective earth tests. If the test system has no Schuko plug, the dummy can be contacted through the L, N, and PE lab connectors; however, you should then connect the Schuko plug to the built-in Schuko socket, which is fed by those connectors. The ST3010 can only perform one type of test at a time.
Specifications
| Insulation resistance |
1 MΩ / 1 W |
| Leakage current resistance |
50 kΩ / 1 W |
| Triggering voltage |
750 V AC / 1000 V DC |
| Weight |
1 kg |
| Dimensions |
160 x 120 x 90 mm |
