Eleshop ATS1 series soldering tips
Details

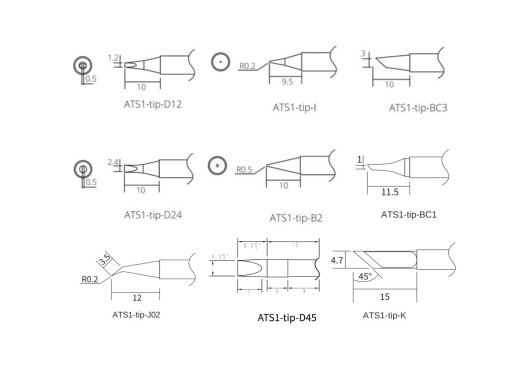

These Eleshop ATS1 series soldering tips are suitable for the ELE-ATS1 soldering station. An overview of the available soldering tips is made below. Moreover, the type of tip you want to buy can be selected in the top right corner.
| Model | Type | Dimensions tip (mm) | Length tip (mm) | Price | Stock |
|---|---|---|---|---|---|
| ATS1-tip-B2 | Conical | Radius: 0.5 | 10 | ||
| ATS1-tip-BC1 | Bevel | Diameter: 1 | 11.5 | ||
| ATS1-tip-BC3 | Bevel | Diameter: 3 | 10 | ||
| ATS1-tip-D12 | Chisel | 0.5 x 1.2 | 10 | ||
| ATS1-tip-D24 | Chisel | 0.5 x 2.4 | 10 | ||
| ATS1-tip-D45 | Chisel | 0.5 x 4.5 | 10 | ||
| ATS1-tip-I | Conical | Radius: 0.2 | 9.5 | ||
| ATS1-tip-J02 | Conical bent | Radius: 0.2 | 12 | ||
| ATS1-tip-K | Knife | 2 x 4.7 | 15 |
