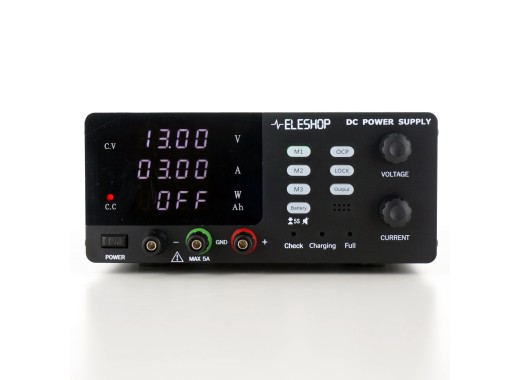

ELE-PSU3020CH lab power supply
Details
The ELE-PSU3020CH is a compact lab power supply from Eleshop, and is suitable for all bench work in laboratories, workshops and education. Furthermore, this single channel supply delivers up to 30V and 20A for 600W total, set with stepless control down to 10mV and 10mA, shown on a 4 digit LCD, with automatic CV and CC switching, overcurrent protection and three memory presets.
The battery charging function sets this model apart. This supply protects against reverse polarity connection, which prevents damage from the most common wiring mistake, stops charging automatically once the battery is full, and displays the delivered charge in Ah.
Model overview
| Model | ELE-PSU1530CH | ELE-PSU3020CH | ELE-PSU3030CH | ELE-PSU6010CH | ELE-PSU6020CH |
|---|---|---|---|---|---|
| Total power | 450 W | 600 W | 900 W | 600 W | 1200 W |
| Voltage range | 0 - 15 V | 0 - 30 V | 0 - 30 V | 0 - 60 V | 0 - 60 V |
| Current range | 0 - 30 A | 0 - 20 A | 0 - 30 A | 0 - 10 A | 0 - 20 A |
| Ripple | 30 mV / 20 mA | 20 mV / 20 mA | 60 mV / 20 mA | 60 mV / 20 mA | 60 mV / 20 mA |
| Price |
Specifications
| Outputs | 1 |
| Type | Switching |
| Resolution | 10 mV / 10 mA |
| Accuracy | CV: ≤ 0.05% + 10 mV CC: ≤ 0.01% + 10 mA |
| Protection | OCP |
| Display | 4-digit LCD |
| Memory groups | 3 |
| Dimensions | 265 x 190 x 85 mm |
| Weight | 2.5 kg |
Accessories
- Power cord
- Set test leads (4mm to alligator clip)
- Set test lead (6M cable lug)
- 2x Clamps
Pros and cons
- Affordable
- Battery charge function
- Reverse polarity protection
- High ripple
Downloads
| ELE-PSU-CH user manual v1.2.2 |  (1.19 MB) | Download |
