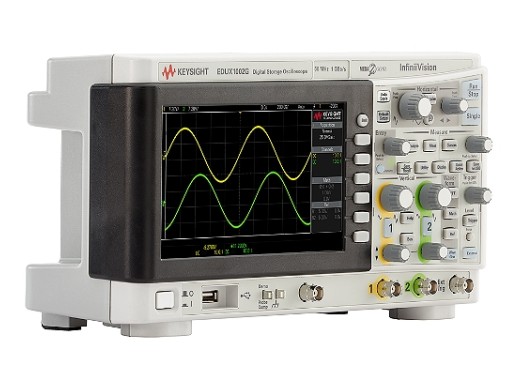

The Keysight EDUX1002G oscilloscope is the 50MHz version in the 1000X series oscilloscopes of Keysight. The series has a high quality price ratio. These models make it easy and accessible to perform professional measurements through the user-friendly interface. 2 models of this series also have a function generator, as you can see in the table below.
The 1000 X-series oscilloscopes have a bandwidth of 50 to 100 MHz. With Keysight's unique MegaZoom IV custom ASIC technology, these oscilloscopes achieve a capture rate of 50000 waveforms per second. This speed makes it possible to detect more obvious errors and deviations, which can be missed on slower models. The 1000 X-series has a minimum vertical range of 500 µV/div, so even the smallest signals can be seen clearly. Furthermore, all the models have a number of mathematical functions for the waveforms.
Each oscilloscope in this series has two USB 2.0 connections.
The differences between the models of the Keysight 1000-X series are shown in the table below.
Model | EDUX1002A | EDUX1002G | DSOX1102A | DSOX1102G |
Bandbreedte | 50 MHz | 50 MHz | 70 or 100 MHz | 70 or 100 MHz |
Maximale sample rate | 1 GSa/s | 1 GSa/s | 2 GSa/s | 2 GSa/s |
Maximale memory depth | 100 kpts | 100 kpts | 1 Mpts | 1 Mpts |
Functiegenerator |
no
|
yes
|
no
|
yes
|
Prijs | or | or |
Channels | 2 |
Waveforms capture speed | 50000 wfms/s |
Trigger types | Edge, Pulse width, Pattern/state, Video |
Function generator maximum frequency | 20 MHz (with Bode plot test) |
Waveform math | Adding, subtracting, multiplying, dividing, FFT (magnitude and phase), low pass filter |
Vertical resolution | 8 bit |
Vertical scale | 500 µV/div - 10 V/div |
Horizontal scale | 5 ns/div ~ 50 s/div |
Display | 17.8 cm (7.0") diagonal color TFT LCD (WVGA) |
Connectivity | 2 USB 2.0 ports (Host/Device) |
Dimensions | 314 x 165 x 130 mm |
Weight | 3.12 kg |
You can buy additional software for the oscilloscopes by clicking on the code of the software option. The following options are available:
Model | EDUX1002A | EDUX1002G | DSOX1102A | DSOX1102G |
EDUX1EMBD |
yes |
yes
|
no
|
no
|
DSOX1AUTO |
no
|
no
|
yes
|
yes
|
DSOX1B7T102 |
no
|
no
|
yes
|
yes
|
DSOX1EMBD |
no
|
no
|
yes
|
yes
|
For more information about the software options, please consult the website of Keysight
The Keysight 1000-X series scopes come with:
EEVblog has placed a video about the 1000 X-series scopes. The video talks extensively about the quality of the scopes and looks at which hardware is in the scope.
Keysight 1000X serie Datasheet |
(4.02 MB) | Download |
