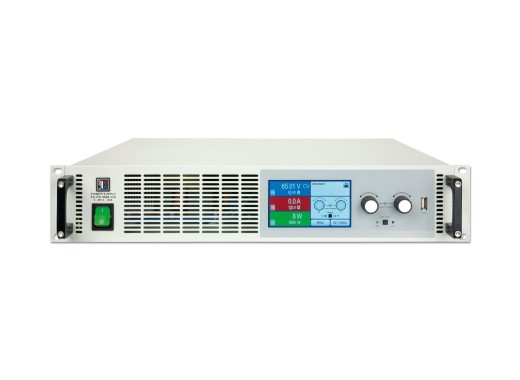

EA-PSI 9080-60 power supply
Details
The PSI 9080-60 power supply from Elektro Automatik is able to deliver up to 80V and 60A with a power of 1500W. Its touchscreen display, two rotary knobs, and built-in function generator with 5 waveforms and one arbitrary waveform you can configure make this power supply good for any job. With the basic protections and several included interfaces, you can get a lot of results and information regarding your tests. There is even a slot for an additional interface.
Specifications
| Total power | 1500 W |
| Outputs | 1 |
| Output switch | Yes |
| Voltage range | 0 - 80 V |
| Current range | 0 - 60 A |
| Resistance range | 0 - 40.8 Ω |
| Resolution | 10 mV/1 mA/1 W/ 0.1mΩ |
| Ripple | 8 mVrms / 5.6 mArms |
| Protection | OPP, OCP, OVP, OTP |
| Interfaces | USB A, USB B, Master-Slave, Analog, Remote sensing, Share-bus |
| Display | TFT touch panel |
| Dimensions | 483 x 88 x 535 mm |
| Weight | 12.0 kg |
Accessories
The PSI 9080-60 power supply comes with
- USB cable (1.8m)
- USB stick
- Mounting brackets
- Share Bus plug
- Remote sensing plug
- Set of DC terminal cover
- Main cord
Pros and cons
- Built-in function generator with 6 waveforms
- Only rack-mountable
Downloads
| EA-PSI 9000 datasheet |  (1.13 MB) | Download |
