EA-PSI 9080-40T power supply
Details
The EA-PSI 9080-40T from Elektro-Automatik is a power supply that can deliver voltages up to 80V, currents up to 40A, and a maximum power of 1000W. The PSI 9000T series comes with a built-in function generator, with 5 defined signals that can be controlled and one arbitrary signal that is fully customizable. With the USB ports, the power supply can be controlled by a PC through the included software or SCPI commands. The power supply can also be regulated via the 3.5" colour touchscreen and the two rotary knobs.

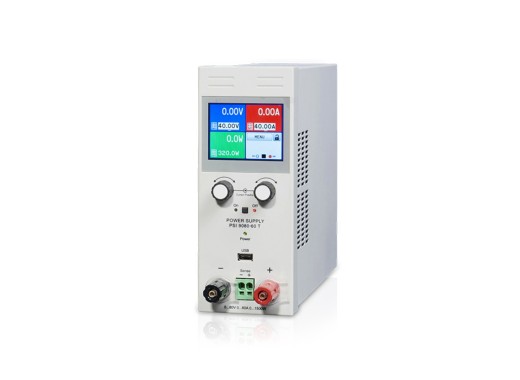

The picture provided is the EA-PSI 9080-60T, but the layout of the two power supplies is comparable.
Model overview
| Model | EA-PSI 9080-20T | EA-PSI 9080-40T |
|---|---|---|
| Power | 640 W | 1000 W |
| Current range | 0 - 20 A | 0 - 40 A |
| Ripple | ≤ 2 mV / ≤ 1 mA | ≤ 4 mV / ≤ 6 mA |
| Price |
Specifications
| Outputs | 1 |
| Output switch | Yes |
| Voltage range | 0 - 80 V |
| Resistance range | 0 - 80 Ω |
| Resolution | 10 mV/1 mA/0.1 W/1 mΩ |
| Protection | OPP, OCP, OVP, OTP |
| Interfaces | USB A, USB B, Remote sensing |
| Display | 3.5" color TFT touchscreen |
| Dimensions | 92 x 239 x 412 mm |
| Weight | 8 kg |
Accessories
The PSI 9080-40 T comes with:
- USB cable
- Power cord
Pros and cons
- Compact
Downloads
| EA-PSI 9000T Datasheet |  (764.5 KB) | Download |
| EA-PSI 9000T manual | (2.19 MB) | Download |
