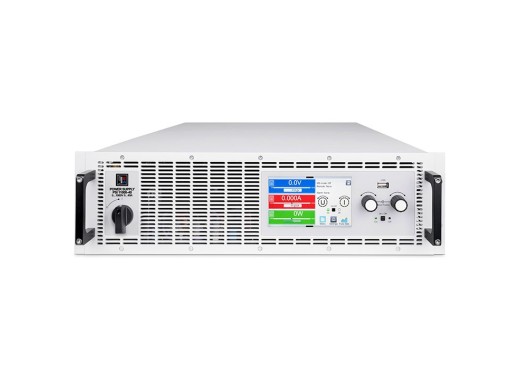

EA-PSI 11000-40 3U power supply

14700 €14,700.00 Excl. VAT
Loading stock info
  •
Product number: ELE008872

Be the first to review this product

Lowest price guaranteed

Details

The Elektro-Automatik EA-PSI 11000-40 3U is a programmable power supply able to deliver up to 1000V and 40A with a power of 15000W. The EA-PSI 11000-40 3U has a high resolution with 16 bit ADCs.The power supply has a built-in function generator with multiple pre-configured waveforms. The device has multiple protective functions such as OPP, OCP, OVP and OTP and several included interfaces and multiple other interfaces are optional. The EA-PSI 11000-40 3U has temperature-controlled cooling that reduces the noise produced by adjusting the fan speed to the temperature inside the power supply. This power supply offers flexible "auto-ranging" which allows the power supply to offer a high current or a high voltage within the power offered. Additionally, the power supply can simulate batteries as single cells for optimal configuration of energy storage and you can program simulation models for solar cells including shadow, temperature and clouds. Finally, the power supply has a 5" TFT touchscreen display with an intuitive user interface.

Series comparison

Elektro Automatik offers various power supplies for various applications, where the most important differences can be seen below:

Series PS PSI PSBE PSB PU PUB
Bi-directional
Internal function generator
Local interface (display, knobs and buttons)
Power range per unit 1.5 kW - 30 kW 1.5 kW - 30 kW 5 kW - 30 kW 1.5 kW - 30 kW 30 kW - 60 kW 30 kW - 60 kW

Model overview

The models in the PSI series differ mainly in total power, voltage range and current range.

Model Voltage range Current range Total power Price
EA-PSI 10060-60 2U 60 V 60 A 1500 W 4330 €4,330.00 Excl. VAT
EA-PSI 10080-60 2U 80 V 60 A 1500 W 4330 €4,330.00 Excl. VAT
EA-PSI 10200-25 2U 200 V 25 A 1500 W 4330 €4,330.00 Excl. VAT
EA-PSI 10360-15 2U 360 V 15 A 1500 W 4330 €4,330.00 Excl. VAT
EA-PSI 10500-10 2U 500 V 10 A 1500 W 4430 €4,430.00 Excl. VAT
EA-PSI 10750-06 2U 750 V 6 A 1500 W 4430 €4,430.00 Excl. VAT
EA-PSI 10060-120 2U 60 V 120 A 3000 W 5560 €5,560.00 Excl. VAT
EA-PSI 10080-120 2U 80 V 120 A 3000 W 5560 €5,560.00 Excl. VAT
EA-PSI 10200-50 2U 200 V 50 A 3000 W 5560 €5,560.00 Excl. VAT
EA-PSI 10360-30 2U 360 V 30 A 3000 W 5560 €5,560.00 Excl. VAT
EA-PSI 10500-20 2U 500 V 20 A 3000 W 5770 €5,770.00 Excl. VAT
EA-PSI 10750-12 2U 750 V 12 A 3000 W 5770 €5,770.00 Excl. VAT
EA-PSI 11000-10 2U 1000 V 10 A 3000 W 6180 €6,180.00 Excl. VAT
EA-PSI 11500-06 2U 1500 V 6 A 3000 W 6180 €6,180.00 Excl. VAT
EA-PSI 10060-170 3U 60 V 170 A 5000 W 7210 €7,210.00 Excl. VAT
EA-PSI 10080-170 3U 80 V 170 A 5000 W 7210 €7,210.00 Excl. VAT
EA-PSI 10200-70 3U 200 V 70 A 5000 W 7210 €7,210.00 Excl. VAT
EA-PSI 10360-40 3U 360 V 40 A 5000 W 7210 €7,210.00 Excl. VAT
EA-PSI 10500-30 3U 500 V 30 A 5000 W 7210 €7,210.00 Excl. VAT
EA-PSI 10750-20 3U 750 V 20 A 5000 W 7210 €7,210.00 Excl. VAT
EA-PSI 10920-20 3U 920 V 20 A 5000 W 7210 €7,210.00 Excl. VAT
EA-PSI 10060-340 3U 60 V 340 A 10000 W 9790 €9,790.00 Excl. VAT
EA-PSI 10080-340 3U 80 V 340 A 10000 W 9790 €9,790.00 Excl. VAT
EA-PSI 10200-140 3U 200 V 140 A 10000 W 9790 €9,790.00 Excl. VAT
EA-PSI 10360-80 3U 360 V 80 A 10000 W 9790 €9,790.00 Excl. VAT
EA-PSI 10500-60 3U 500 V 60 A 10000 W 10100 €10,100.00 Excl. VAT
EA-PSI 10750-40 3U 750 V 40 A 10000 W 10100 €10,100.00 Excl. VAT
EA-PSI 10920-40 3U 920 V 40 A 10000 W 10400 €10,400.00 Excl. VAT
EA-PSI 11000-30 3U 1000 V 30 A 10000 W 10400 €10,400.00 Excl. VAT
EA-PSI 11500-20 3U 1500 V 20 A 10000 W 10400 €10,400.00 Excl. VAT
EA-PSI 10060-510 3U 60 V 510 A 15000 W 13700 €13,700.00 Excl. VAT
EA-PSI 10080-510 3U 80 V 510 A 15000 W 13700 €13,700.00 Excl. VAT
EA-PSI 10200-210 3U 200 V 210 A 15000 W 13700 €13,700.00 Excl. VAT
EA-PSI 10360-120 3U 360 V 120 A 15000 W 13700 €13,700.00 Excl. VAT
EA-PSI 10500-90 3U 500 V 90 A 15000 W 14300 €14,300.00 Excl. VAT
EA-PSI 10750-60 3U 750 V 60 A 15000 W 14300 €14,300.00 Excl. VAT
EA-PSI 10920-60 3U 920 V 60 A 15000 W 14700 €14,700.00 Excl. VAT
EA-PSI 11000-40 3U 1000 V 40 A 15000 W 14700 €14,700.00 Excl. VAT
EA-PSI 11500-30 3U 1500 V 30 A 15000 W 14700 €14,700.00 Excl. VAT
EA-PSI 12000-20 3U 2000 V 20 A 15000 W 14700 €14,700.00 Excl. VAT
EA-PSI 10060-1000 4U 60 V 1000 A 30000 W 20100 €20,100.00 Excl. VAT
EA-PSI 10080-1000 4U 80 V 1000 A 30000 W 20100 €20,100.00 Excl. VAT
EA-PSI 10200-420 4U 200 V 420 A 30000 W 20100 €20,100.00 Excl. VAT
EA-PSI 10360-240 4U 360 V 240 A 30000 W 20100 €20,100.00 Excl. VAT
EA-PSI 10500-180 4U 500 V 180 A 30000 W 20600 €20,600.00 Excl. VAT
EA-PSI 10750-120 4U 750 V 120 A 30000 W 20600 €20,600.00 Excl. VAT
EA-PSI 10920-125 4U 920 V 125 A 30000 W 21800 €21,800.00 Excl. VAT
EA-PSI 11000-80 4U 1000 V 80 A 30000 W 21800 €21,800.00 Excl. VAT
EA-PSI 11500-60 4U 1500 V 60 A 30000 W 21800 €21,800.00 Excl. VAT
EA-PSI 12000-40 4U 2000 V 40 A 30000 W 21800 €21,800.00 Excl. VAT

Specifications

Outputs1
Output switchYes
Ripple150 mV
Resolution10 mV / 10 mA
ProtectionOVP, OCP, OPP, OT
InterfacesUSB, Ethernet, Analog, USB Host, Share-Bus, Master-Slave Bus
Display5" TFT
Rack mount3U
Dimensions483 mm × 133 mm × 559 mm
Weight32.8 kg

Accessories

The EA-PSI 11000-40 3U power supply comes with:
  • 2x remote sensing plug
  • 1x USB cable (1.8m)
  • 1x set of DC terminal covers
  • 1x sense terminal cover
  • 1x power cord
