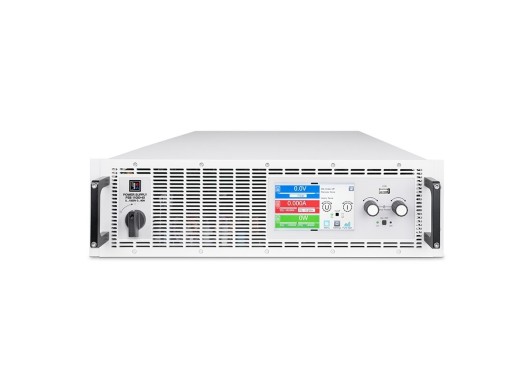

EA-PSB 11000-40 3U bi-directional power supply

23700 €23,700.00 Excl. VAT
Loading stock info
  •
Product number: ELE006640

Be the first to review this product

Lowest price guaranteed

Details

The Elektro Automatik EA-PSB 11000-40 3U bi-directional laboratory power supply is both a load and a power supply in one device. It can deliver up to 40A, 1000V & 15000W and operates at up to 96% efficiency. This lab power supply uses two quadrants in source and sink mode, allowing you to effortlessly switch between these two modes.

It features automatically switching DC input/output stages, with control modes for CC, CV, CP, and CR, including fast crossover transitions. Thanks to its form factor, it can be placed on a desktop or mounted in a 19" rack.

This product also includes an integrated function generator with predefined waveforms. The high-resolution 16-bit ADC, 5" color TFT display, and interfaces such as USB, analog, master/slave, and Ethernet — along with optional interfaces like CAN, CANopen, RS232, Profibus, EtherCAT, Profinet, and Modbus — make it suitable for a wide range of applications. These include automotive testing with LV123, LV124, and LV148 procedures, battery testing with integrated battery/test mode, fuel cell simulation, and solar cell testing.

Are you looking for more power? We can deliver the PSB series in any required power output, up to >100kW. Contact us for more information

Series comparison

Elektro Automatik offers various power supplies for various applications, where the most important differences can be seen below:

Series PS PSI PSBE PSB PU PUB
Bi-directional
Internal function generator
Local interface (display, knobs and buttons)
Power range per unit 1.5 kW - 30 kW 1.5 kW - 30 kW 5 kW - 30 kW 1.5 kW - 30 kW 30 kW - 60 kW 30 kW - 60 kW

Model overview

The models in the PSB series differ mainly in total power, voltage range and current range.

Model Voltage range Current range Total power Price
EA-PSB 10060-60 2U 60 V 60 A 1500 W 4790 €4,790.00 Excl. VAT
EA-PSB 10080-60 2U 80 V 60 A 1500 W 4790 €4,790.00 Excl. VAT
EA-PSB 10200-25 2U 200 V 25 A 1500 W 4790 €4,790.00 Excl. VAT
EA-PSB 10360-15 2U 360 V 15 A 1500 W 4790 €4,790.00 Excl. VAT
EA-PSB 10500-10 2U 500 V 10 A 1500 W 5360 €5,360.00 Excl. VAT
EA-PSB 10750-06 2U 750 V 6 A 1500 W 5360 €5,360.00 Excl. VAT
EA-PSB 10060-120 2U 60 V 120 A 3000 W 7310 €7,310.00 Excl. VAT
EA-PSB 10080-120 2U 80 V 120 A 3000 W 7310 €7,310.00 Excl. VAT
EA-PSB 10200-50 2U 200 V 50 A 3000 W 7310 €7,310.00 Excl. VAT
EA-PSB 10360-30 2U 360 V 30 A 3000 W 7310 €7,310.00 Excl. VAT
EA-PSB 10500-20 2U 500 V 20 A 3000 W 7620 €7,620.00 Excl. VAT
EA-PSB 10750-12 2U 750 V 12 A 3000 W 7620 €7,620.00 Excl. VAT
EA-PSB 11000-10 2U 1000 V 10 A 3000 W 7830 €7,830.00 Excl. VAT
EA-PSB 11500-06 2U 1500 V 6 A 3000 W 7830 €7,830.00 Excl. VAT
EA-PSB 10060-170 3U 60 V 170 A 5000 W 12300 €12,300.00 Excl. VAT
EA-PSB 10080-170 3U 80 V 170 A 5000 W 12300 €12,300.00 Excl. VAT
EA-PSB 10200-70 3U 200 V 70 A 5000 W 12300 €12,300.00 Excl. VAT
EA-PSB 10360-40 3U 360 V 40 A 5000 W 12300 €12,300.00 Excl. VAT
EA-PSB 10500-30 3U 500 V 30 A 5000 W 13000 €13,000.00 Excl. VAT
EA-PSB 10750-20 3U 750 V 20 A 5000 W 13000 €13,000.00 Excl. VAT
EA-PSB 10920-20 3U 920 V 20 A 5000 W 13000 €13,000.00 Excl. VAT
EA-PSB 10060-340 3U 60 V 340 A 10000 W 16700 €16,700.00 Excl. VAT
EA-PSB 10080-340 3U 80 V 340 A 10000 W 16700 €16,700.00 Excl. VAT
EA-PSB 10200-140 3U 200 V 140 A 10000 W 16700 €16,700.00 Excl. VAT
EA-PSB 10360-80 3U 360 V 80 A 10000 W 16700 €16,700.00 Excl. VAT
EA-PSB 10500-60 3U 500 V 60 A 10000 W 16700 €16,700.00 Excl. VAT
EA-PSB 10750-40 3U 750 V 40 A 10000 W 16700 €16,700.00 Excl. VAT
EA-PSB 10920-40 3U 920 V 40 A 10000 W 17300 €17,300.00 Excl. VAT
EA-PSB 11000-30 3U 1000 V 30 A 10000 W 17300 €17,300.00 Excl. VAT
EA-PSB 11500-20 3U 1500 V 20 A 10000 W 17300 €17,300.00 Excl. VAT
EA-PSB 10060-510 3U 60 V 510 A 15000 W 21700 €21,700.00 Excl. VAT
EA-PSB 10080-510 3U 80 V 510 A 15000 W 21700 €21,700.00 Excl. VAT
EA-PSB 10200-210 3U 200 V 210 A 15000 W 21700 €21,700.00 Excl. VAT
EA-PSB 10360-120 3U 360 V 120 A 15000 W 21700 €21,700.00 Excl. VAT
EA-PSB 10500-90 3U 500 V 90 A 15000 W 23200 €23,200.00 Excl. VAT
EA-PSB 10750-60 3U 750 V 60 A 15000 W 23200 €23,200.00 Excl. VAT
EA-PSB 10920-60 3U 920 V 60 A 15000 W 23700 €23,700.00 Excl. VAT
EA-PSB 11000-40 3U 1000 V 40 A 15000 W 23700 €23,700.00 Excl. VAT
EA-PSB 11500-30 3U 1500 V 30 A 15000 W 23700 €23,700.00 Excl. VAT
EA-PSB 12000-20 3U 2000 V 20 A 15000 W 23700 €23,700.00 Excl. VAT
EA-PSB 10060-1000 4U 60 V 1000 A 30000 W 29700 €29,700.00 Excl. VAT
EA-PSB 10080-1000 4U 80 V 1000 A 30000 W 29700 €29,700.00 Excl. VAT
EA-PSB 10200-420 4U 200 V 420 A 30000 W 29700 €29,700.00 Excl. VAT
EA-PSB 10360-240 4U 360 V 240 A 30000 W 29700 €29,700.00 Excl. VAT
EA-PSB 10500-180 4U 500 V 180 A 30000 W 31100 €31,100.00 Excl. VAT
EA-PSB 10750-120 4U 750 V 120 A 30000 W 31100 €31,100.00 Excl. VAT
EA-PSB 10920-125 4U 920 V 125 A 30000 W 32100 €32,100.00 Excl. VAT
EA-PSB 11000-80 4U 1000 V 80 A 30000 W 32100 €32,100.00 Excl. VAT
EA-PSB 11500-60 4U 1500 V 60 A 30000 W 32100 €32,100.00 Excl. VAT
EA-PSB 12000-40 4U 2000 V 40 A 30000 W 32100 €32,100.00 Excl. VAT

Specifications

ModeCC, CV, CP, CR
Outputs1
Output switchYes
Resolution10mV/10mA
ProtectionOPP, OCP, OVP, OTP
InterfacesUSB, Ethernet, Analog, USB Host, Share-Bus, Master-Slave Bus
Display5" TFT
Rack mount19" & 3U
Dimensions483 mm × 133 mm × 559 mm
Weight32.8 kg

Accessories

  • No included accessories

Pros and cons

  • Ability to redeliver power
  • Fast switchover between load and supply
  • High voltage range
  • Low current range

Downloads

PSB 10000 3U series manual
pdf (4.14 MB)Download
PSB 10000 3U series datasheet
pdf (1.12 MB)Download
