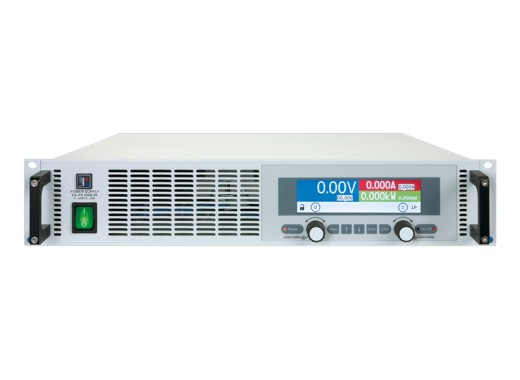

EA-PS 9750-04 power supply
Details
The PS 9750-04 power supply from Elektro Automatik is able to deliver up to 750V and 4A with a power delivery of up to 1kW. This power supply is only rack-mountable. The PS 9750-04 has a TFT color display with rotary knobs that have a push function and 6 push buttons which give you full control of the power supply. With active PFC, standard protection and all the connectivity like analog, USB-b and LAN you can remotely operate the power supply in complete safety.
Specifications
| Total power | 1000 W |
| Outputs | 1 |
| Output switch | Yes |
| Voltage range | 0 - 750 V |
| Current range | 0 - 4 A |
| Resolution | 0.1 V/1 mA/1 W |
| Ripple | 60 mVrms / 0.3 mArms |
| Protection | OPP, OCP, OVP, OTP, PF |
| Interfaces | USB A, USB B, LAN, Analog, Remote sensing, Share-bus |
| Display | TFT color display |
| Dimensions | 483 x 88 x 535 mm |
| Weight | 11.5 kg |
Accessories
The PS 9750-04 power supply comes with
- Share-bus plug
- Remote sensing plug
- USB cable 1.8m
- Main cord
Pros and cons
- Power up to 1kW
- Only rack-mountable
- Low current
Downloads
| EA-PS9000 2U |  (1.06 MB) | Download |
