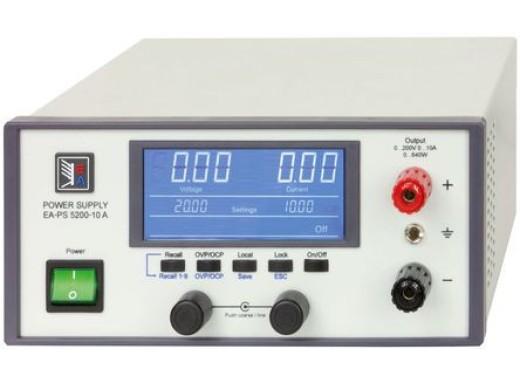

EA's power supplies are microcontroller-controlled digital power supplies with good functionality. This power supply offers flexible "auto-ranging". This allows it to offer either a high current, or a high voltage within the power provided, as can be seen in the pictures. The power supply clearly indicates when it operates in CC (constant current), or CV (constant voltage) mode. In addition, the LCD screen has room for 4 digits to accurately indicate the current current current and voltage. With the push of a button you can switch between fine or precise settings. The settings are accurate to less than 0.2% deviation. In addition, 9 settings can be saved and revoked. The power supply is actively cooled.
The power supply provides overvoltage protection, but also overcurrent protection. In this way, it can be set at which current the power supply should be switched off. The current is adjustable from 0 - 110 %. These values are also saved with the recall function.
The power supplies can be managed and controlled by a computer via a USB connection on the back of the device.
|Output voltage||0 - 80 Volt|
|Output current||0 - 10 A|
|Input voltage||90 - 260 V / 45 - 65 Hz|
|Ripple||< 80 mVpp, < 10 mVrms|
|Adjustment deviation||< 0.2 %|
The power supply comes with:.
Do not forget to order the correct bekabeling
