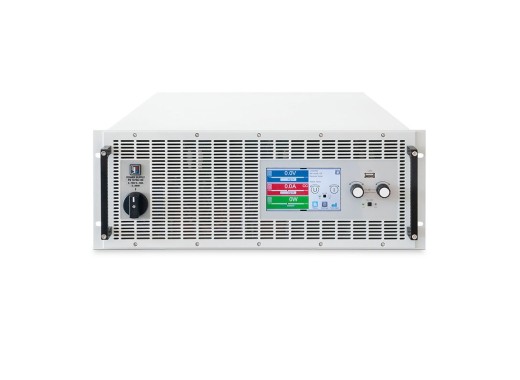

EA-PS 10060-1000 4U power supply

18300 €18,300.00 Excl. VAT
Loading stock info
  •
Product number: ELE008823

Be the first to review this product

Lowest price guaranteed

Details

The Elektro Automatik EA-PS 10060-1000 4U lab power supply from Elektro-Automatik belongs to the EA-PS 10000 4U series and features a power output of 30000W. This rack-mountable power supply has an output voltage of 60V and an output current of 1000A.

These power supplies offer flexible "auto-ranging". This allows them to offer EITHER a high current OR a high voltage within the power offered. There is a picture of this in the images above. The power supply indicates when it is operating in CC (constant current), CV (constant voltage) or CP (constant power) mode. In addition, the lab power supplies contain an LCD with an accurate indication of the real-time current and voltage.

The power supplies offer overvoltage-, overcurrent-, overpower- and overtemperature protection. Also, the power supplies can be managed and controlled both analogue and digitally, making the EA-PS 10000 4U series very comprehensive and reliable.

Series comparison

Elektro Automatik offers various power supplies for various applications, where the most important differences can be seen below:

Series PS PSI PSBE PSB PU PUB
Bi-directional
Internal function generator
Local interface (display, knobs and buttons)
Power range per unit 1.5 kW - 30 kW 1.5 kW - 30 kW 5 kW - 30 kW 1.5 kW - 30 kW 30 kW - 60 kW 30 kW - 60 kW

Model overview

The models in the PS series differ mainly in total power, voltage range and current range.

Model Voltage range Current range Total power Price
EA-PS 10060-60 2U power supply 60 V 60 A 1500 W 3910 €3,910.00 Excl. VAT
EA-PS 10080-60 2U power supply 80 V 60 A 1500 W 3910 €3,910.00 Excl. VAT
EA-PS 10200-25 2U power supply 200 V 25 A 1500 W 3910 €3,910.00 Excl. VAT
EA-PS 10360-15 2U power supply 360 V 15 A 1500 W 3910 €3,910.00 Excl. VAT
EA-PS 10500-10 2U power supply 500 V 10 A 1500 W 4020 €4,020.00 Excl. VAT
EA-PS 10750-06 2U power supply 750 V 6 A 1500 W 4020 €4,020.00 Excl. VAT
EA-PS 10060-120 2U power supply 60 V 120 A 3000 W 5050 €5,050.00 Excl. VAT
EA-PS 10080-120 2U power supply 80 V 120 A 3000 W 5050 €5,050.00 Excl. VAT
EA-PS 10200-50 2U power supply 200 V 50 A 3000 W 5050 €5,050.00 Excl. VAT
EA-PS 10360-30 2U power supply 360 V 30 A 3000 W 5050 €5,050.00 Excl. VAT
EA-PS 10500-20 2U power supply 500 V 20 A 3000 W 5150 €5,150.00 Excl. VAT
EA-PS 10750-12 2U power supply 750 V 12 A 3000 W 5150 €5,150.00 Excl. VAT
EA-PS 11000-10 2U power supply 1000 V 10 A 3000 W 5460 €5,460.00 Excl. VAT
EA-PS 11500-06 2U power supply 1500 V 6 A 3000 W 5460 €5,460.00 Excl. VAT
EA-PS 10060-170 3U power supply 60 V 170 A 5000 W 6900 €6,900.00 Excl. VAT
EA-PS 10080-170 3U power supply 80 V 170 A 5000 W 6900 €6,900.00 Excl. VAT
EA-PS 10200-70 3U power supply 200 V 70 A 5000 W 6900 €6,900.00 Excl. VAT
EA-PS 10360-40 3U power supply 360 V 40 A 5000 W 6900 €6,900.00 Excl. VAT
EA-PS 10500-30 3U power supply 500 V 30 A 5000 W 6900 €6,900.00 Excl. VAT
EA-PS 10750-20 3U power supply 750 V 20 A 5000 W 6900 €6,900.00 Excl. VAT
EA-PS 10920-20 3U power supply 920 V 20 A 5000 W 6900 €6,900.00 Excl. VAT
EA-PS 10060-340 3U power supply 60 V 340 A 10000 W 8860 €8,860.00 Excl. VAT
EA-PS 10080-340 3U power supply 80 V 340 A 10000 W 8860 €8,860.00 Excl. VAT
EA-PS 10200-140 3U power supply 200 V 140 A 10000 W 8860 €8,860.00 Excl. VAT
EA-PS 10360-80 3U power supply 360 V 80 A 10000 W 8860 €8,860.00 Excl. VAT
EA-PS 10500-60 3U power supply 500 V 60 A 10000 W 9370 €9,370.00 Excl. VAT
EA-PS 10750-40 3U power supply 750 V 40 A 10000 W 9370 €9,370.00 Excl. VAT
EA-PS 10920-40 3U power supply 920 V 40 A 10000 W 10300 €10,300.00 Excl. VAT
EA-PS 11000-30 3U power supply 1000 V 30 A 10000 W 10300 €10,300.00 Excl. VAT
EA-PS 11500-20 3U power supply 1500 V 20 A 10000 W 10300 €10,300.00 Excl. VAT
EA-PS 10060-510 3U power supply 60 V 510 A 15000 W 11700 €11,700.00 Excl. VAT
EA-PS 10080-510 3U power supply 80 V 510 A 15000 W 11700 €11,700.00 Excl. VAT
EA-PS 10200-210 3U power supply 200 V 210 A 15000 W 11700 €11,700.00 Excl. VAT
EA-PS 10360-120 3U power supply 360 V 120 A 15000 W 11700 €11,700.00 Excl. VAT
EA-PS 10500-90 3U power supply 500 V 90 A 15000 W 13100 €13,100.00 Excl. VAT
EA-PS 10750-60 3U power supply 750 V 60 A 15000 W 13100 €13,100.00 Excl. VAT
EA-PS 10920-60 3U power supply 920 V 60 A 15000 W 13500 €13,500.00 Excl. VAT
EA-PS 11000-40 3U power supply 1000 V 40 A 15000 W 13500 €13,500.00 Excl. VAT
EA-PS 11500-30 3U power supply 1500 V 30 A 15000 W 13500 €13,500.00 Excl. VAT
EA-PS 12000-20 3U power supply 2000 V 20 A 15000 W 13500 €13,500.00 Excl. VAT
EA-PS 10060-1000 4U power supply 60 V 1000 A 30000 W 18300 €18,300.00 Excl. VAT
EA-PS 10080-1000 4U power supply 80 V 1000 A 30000 W 18300 €18,300.00 Excl. VAT
EA-PS 10200-420 4U power supply 200 V 420 A 30000 W 18300 €18,300.00 Excl. VAT
EA-PS 10360-240 4U power supply 360 V 240 A 30000 W 18300 €18,300.00 Excl. VAT
EA-PS 10500-180 4U power supply 500 V 180 A 30000 W 18700 €18,700.00 Excl. VAT
EA-PS 10750-120 4U power supply 750 V 120 A 30000 W 18700 €18,700.00 Excl. VAT
EA-PS 10920-125 4U power supply 920 V 125 A 30000 W 19800 €19,800.00 Excl. VAT
EA-PS 11000-80 4U power supply 1000 V 80 A 30000 W 19800 €19,800.00 Excl. VAT
EA-PS 11500-60 4U power supply 1500 V 60 A 30000 W 19800 €19,800.00 Excl. VAT
EA-PS 12000-40 4U power supply 2000 V 40 A 30000 W 19800 €19,800.00 Excl. VAT

Specifications

ModeCC, CV, CP, CR
Outputs1
Output switchYes
Resolution10mV/10mA
ProtectionOPP, OCP, OVP, OTP
InterfacesUSB, Ethernet, Analog, USB Host, Share-Bus, Master-Slave Bus
Display5" TFT
Rack mount19" & 4U
Dimensions483 mm × 177 mm × 559 mm
Weight50 kg

Accessories

The EA-PS 10060-1000 4U power supply comes with:
  • 2x remote sensing plug
  • 1x USB cable (1.8m)
  • 1x set of DC terminal covers
  • 1x sense terminal cover
  • 1x power cord

Downloads

EA-PS 10000 4U manual
pdf (3.28 MB)Download
