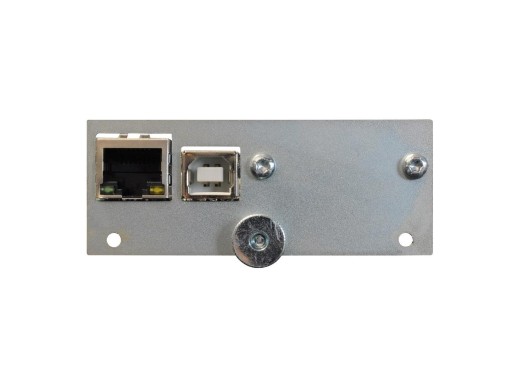

EA-IF KE5 USB/LAN interface
Details
The EA-IF KE5 USB/LAN interface module is an optional retrofit which can be added to the EA-EL 3000 B and EA-PS 3000 C series. This retrofit allows you to add one or two digital ports or an analog port. The analog port (15-pin sub-D) comes bundled with a USB port, such as the USB + LAN combination. This configuration allows users to switch between digital and analog remote control of the module where you install this retrofit in. Additionally, the USB port supports digital remote control via SCPI or ModBus commands and also enables you to perform firmware updates.
Specifications
| Connectivity | USB type-B, RJ45 |
| Dimensions | 76 x 30 x 95 mm |
| Weight | 200 g |
Accessories
The EA-IF KE5 comes by default with:
- USB type-B cable (1.8 m)
Downloads
| EA-IF KE5 datasheet |  (561.98 KB) | Download |
| Programming ModBus guide | (2.25 MB) | Download |
