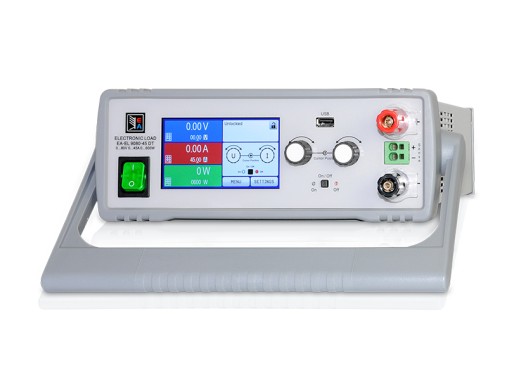

EA-EL 9200-18DT electronic load
Details
This EL 9200-18DT electronic load from Elektro-Automatik is able to handle loads of up to 200V and 18A with a max power of 500W. The EL 9000DT series supports four regulation modes, It also has a built-in function generator with 5 standard waveforms, which can be adjusted with basic parameters, and an arbitrary waveform that is fully adjustable. With the USB, analog and LAN ports, you can connect the load to a PC and control it with software or SCPI commands. You can also use the 4.3" TFT touch screen and the 2 rotary knobs.
Model overview
The main differences between the models of the EL 9000 DT series are shown in the table below.
| Model | EL 9200-18DT | EL 9080-60DT |
|---|---|---|
| Power | 500 W | 1200 W |
| Voltage | 200 V | 80 V |
| Current | 18 A | 60 A | Resistance | 0.5 - 170 Ω | 0.09 - 30 Ω |
| Price |
Specifications
| Static modes | CC, CR, CV, CP |
| Protection | OPP, OCP, OVP |
| Display | 4.3" TFT Touchscreen color display |
| Interfaces | Analog, USB, LAN |
| Dimensions | 308 x 195 x 391 mm |
| Weight | 6.5 kg |
Accessories
The EL 9200-18DT comes with:
- USB cable 1.8 m
- Power cord
Pros and cons
- Compact design
- High performance
Downloads
| EL 9000DT Manual |  (2.53 MB) | Download |
| EL 9000DT datasheet | (861.59 KB) | Download |
