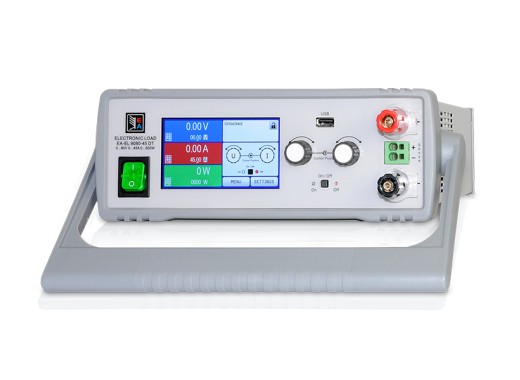

EA-EL 9080-45 DT electronic load
Details
The Elektro-Automatik EA-EL 9080-45 DT is a compact desktop electronic load capable of accurately testing a power supply with 0-80V, 0-45A and 0,09-30Ω with a margin of <0,5%. It has a maximum absorption of 600W at 25°C and 500W at 40°C.
It features a color graphics display with TFT touch panel to control the unit. It can be interfaced with a LAN connection or USB type B for communication and a USB type A for data storage. For purposes of battery testing it can measure constant current or resistance discharging times, consumed capacity (Ah) and energy (Wh). The cooling fans are temperature controlled. Optional software allows for controlling up to 20 units at once.
Specifications
| Power | 600 W |
| Input Voltage range | 0 - 80 V |
| Input Current range | 0 - 45 A |
| Resistance | 0.09 Ω - 30 kΩ |
| Static modes | CC, CP, CR, CV |
| Protection | OPP, OCP, OVP, OTP |
| Interfaces | LAN, USB, Analog |
| Display | TFT touch panel |
| Dimensions | 276 x 103 x 415 mm |
| Weight | 7 kg |
Pros and cons
- Highly accurate absorption
- Capable of battery testing
- Multiple remote control options
- Free control software for WIndows users
Downloads
| EL 9000DT Manual |  (2.53 MB) | Download |
| EL 9000DT datasheet | (861.59 KB) | Download |
