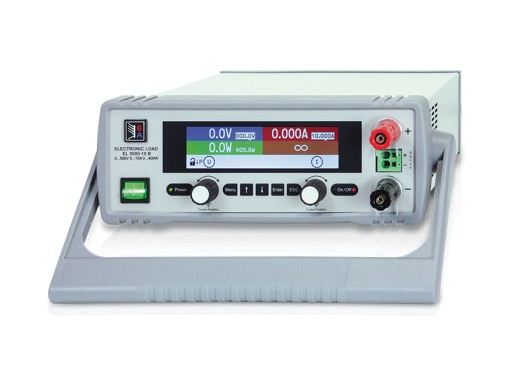

EA-EL 3500-10 B electronic load
Details
The Elektro Automatik EA-EL 3500-10 B is an electronic load able to handle loads up to 500V, 10A and 400W. The EL 3500-10 B electronic load has a built-in function generator capable of triangle, rectangle, trapezoid, and ramp waves. Combined with its interface it provides an intuitive kind of manual operation and a better overview. With the help of the included battery test and MPP tracking this electronic load is able to provide a lot of information. Besides the standard functions like OVP, OCP, and tests, this electronic load also has active power factor correction. The electronic load has the option to be expended with interfaces such as USB, USB + LAN, or USB + Analog. Contact us for more information.
Model overview
The main differences between the models of the EL 3000 B series are shown in the table below.
| Model | EL 3080-60 B | EL 3200-25 B | EL 3500-10 B |
|---|---|---|---|
| Power | 400 W | 400 W | 400 W |
| Voltage | 80 V | 200 V | 500 V |
| Current | 60 A | 25 A | 10 A |
| Price |
Specifications
| Resistance | 6 Ω - 2 kΩ |
| Static modes | CC, CR, CV, CP |
| Protection | OPP, OCP, OVP |
| Display | TFT color display |
| Dimensions | 308 x 103 x 325 mm |
| Weight | 4 kg |
Accessories
The EL 3500-10 B comes with:
- Power cord
Pros and cons
- Integrated battery and solar tests
- Built-in function generator
- No communication interface
Downloads
| Datasheet EL 3000 B |
 (814.61 KB) |
Download |
| Manual EL 3000 B |
(2.12 MB) |
Download |
