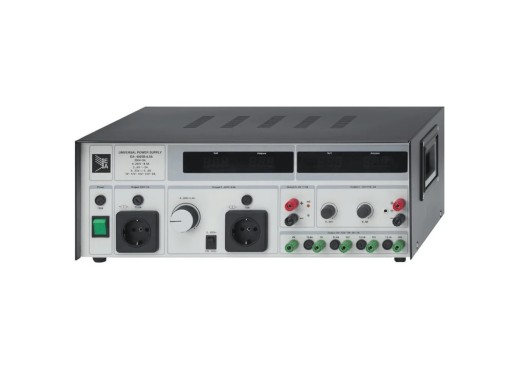

EA-4000-B 4,5 power supply
Details
The EA-4000-B 4,5 is part of the Elektro-Automatik 4000-B series of power supplies. It's unique in that it provides a complete test solution for both AC and DC applications through its multiple channel output options. It can generate a switchable fixed output and a variable output voltage of up to 260V AC at 4.5A and it has a 100% duty cycle.
The outputs are galvanically isolated from the mains supply and also against each other. They can be connected through the standard 4mm safety sockets. The chosen output values are displayed on double 3-digit LED screens.
This products complies with EN61010, EN60950 and EMI EN61326 safety protocols.
Specifications
| Total power | 1400 W |
| Outputs | 5 |
| Output switch | No |
| Voltage range | CH1: 230 V AC CH2: 0 - 260 V AC CH3: 3 - 6 V DC CH4: 0 - 32 V DC CH5: 3 V / 12 V / 18 V / 24 V AC (switchable) |
| Current range | CH1: 2 A CH2: 4.5 A CH3: 2 A CH4: 0 - 5 A CH5: 2 A |
| Display | double 3-digit LED |
| Dimensions | 480 x 180 x 270 mm |
| Weight | 40 kg |
Accessories
The EA-4000-B 4,5 power supply comes by default with:
- Power cord
Pros and cons
- 5 output channels
- Both AC and DC outputs
- No external interfaces
Downloads
| EA-4000-B series datasheet (EN/DE) |  (521.86 KB) | Download |
| EA-4000-B series instruction guide (EN/DE) | (624.57 KB) | Download |
