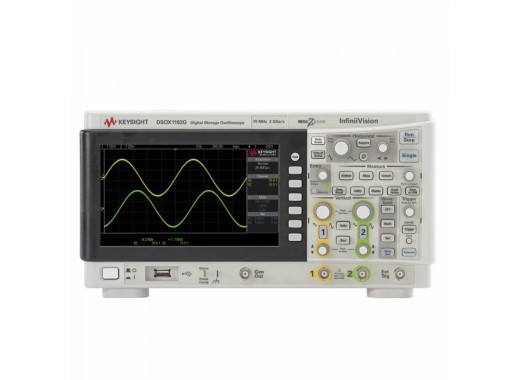

Keysight DSOX1102G oscilloscope 100MHz
Details
The Keysight DSO1102G oscilloscope is the 100MHz version in the 1000X series oscilloscopes of Keysight. The series has a high quality price ratio. These models make it easy and accessible to perform professional measurements through the user-friendly interface. 2 models of this series also have a function generator, as you can see in the table below.
Important aspects
The 1000 X-series oscilloscopes have a bandwidth of 50 to 100 MHz. With Keysight's unique MegaZoom IV custom ASIC technology, these oscilloscopes achieve a capture rate of 50000 waveforms per second. This speed makes it possible to detect more obvious errors and deviations, which can be missed on slower models. The 1000 X-series has a minimum vertical range of 500 µV/div, so even the smallest signals can be seen clearly. Furthermore, all the models have a number of mathematical functions for the waveforms.
Each oscilloscope in this series has two USB 2.0 connections.
Models
The differences between the models of the Keysight 1000-X series are shown in the table below.
| Model | EDUX1002A | EDUX1002G | DSOX1102A | DSOX1102G |
| Bandbreedte | 50 MHz | 50 MHz | 70 or 100 MHz | 70 or 100 MHz |
| Maximale sample rate | 1 GSa/s | 1 GSa/s | 2 GSa/s | 2 GSa/s |
| Maximale memory depth | 100 kpts | 100 kpts | 1 Mpts | 1 Mpts |
| Functiegenerator |
no
|
yes
|
no
|
yes
|
| Prijs | or | or |
Specifications
| Channels | 2 |
| Waveforms capture speed | 50000 wfms/s |
| Trigger types | Edge, Pulse width, Pattern/state, Video |
| Function generator maximum frequency | 20 MHz (with Bode plot test) |
| Waveform math | Adding, subtracting, multiplying, dividing, FFT (magnitude and phase), low pass filter |
| Vertical resolution | 8 bit |
| Vertical scale | 500 µV/div - 10 V/div |
| Horizontal scale | 5 ns/div ~ 50 s/div |
| Display | 17.8 cm (7.0") diagonal color TFT LCD (WVGA) |
| Connectivity | 2 USB 2.0 ports (Host/Device) |
| Dimensions | 314 x 165 x 130 mm |
| Weight | 3.12 kg |
Software
You can buy additional software for the oscilloscopes by clicking on the code of the software option. The following options are available:
| Model | EDUX1002A | EDUX1002G | DSOX1102A | DSOX1102G |
| EDUX1EMBD |
yes |
yes
|
no
|
no
|
| DSOX1AUTO |
no
|
no
|
yes
|
yes
|
| DSOX1B7T102 |
no
|
no
|
yes
|
yes
|
| DSOX1EMBD |
no
|
no
|
yes
|
yes
|
Accessories
The Keysight 1000-X series scopes come with:
- Power cord
- 2x N2142A (1:1, 10:1 switchable 75 MHz) (Only for EDUX1002A and EDUX1002G)
- 2x N2140A (1:1, 10:1 switchable 200 MHz) (Only for DSOX1102A and DSOX1102G) .
Review
EEVblog has placed a video about the 1000 X-series scopes. The video talks extensively about the quality of the scopes and looks at which hardware is in the scope.
