Donaldson Bofa V200 fume extraction kit
Details

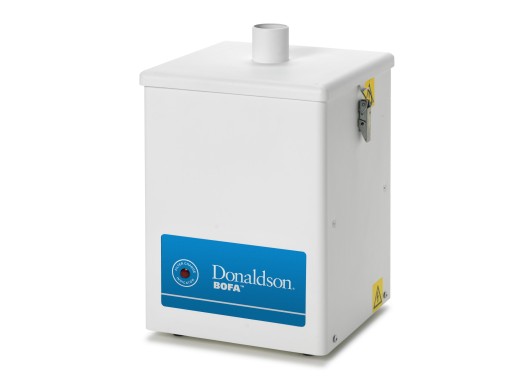

The Donaldson Bofa V200 is a portable fume extraction kit, and is suitable for hand soldering workstations where solder fumes have to be captured at the source. Furthermore, this kit is supplied complete with a table mount installation kit and a 50mm extraction arm, so a single operator position can be set up without ordering anything else.
Three stage filtration draws the fumes through a polypropylene pre filter, a borosilicate HEPA filter and a granulated activated carbon gas filter, which removes 99.997% of particles down to 0.3µm along with the gases that flux releases. A filter blocked indicator on the front panel lights up when the filters need replacing, and at under 54dB(A) the unit stays quiet enough for a shared bench. Replacement pre filters and combined filters are available separately. Contact us for advice on the right extraction arm for your workstation.
Specifications
| Inlets | 1 x 50 mm |
| Airflow | 90 m³/h |
| Max. pressure | 20 mbar |
| Power | 90 W |
| Voltage | 230 V, 50/60 Hz |
| Noise level | < 54 dB(A) |
| Filter | Pre filter, HEPA filter and activated carbon gas filter |
| Filter efficiency | 99.997% of particles >0.3µm |
| Max. duct length | 3 m |
| Cabinet | Powder coated mild steel |
| Dimensions | 420 x 290 x 270 mm |
| Weight | 10 kg |
Accessories
- Pre filter mat, part number A1030102
- Combined HEPA and gas filter, part number A1030099
- Table mount installation kit
- 50mm x 650mm ESD extraction arm
- Power cable
Pros and cons
- Complete kit with table mount and extraction arm
- Three stage filtration captures both particles and flux gases
- Filter blocked indicator on the front
- Replacement filters are sold separately
Downloads
| Bofa V200 datasheet |  (354.72 KB) | Download |
| Bofa V200 user manual | (361.84 KB) | Download |
