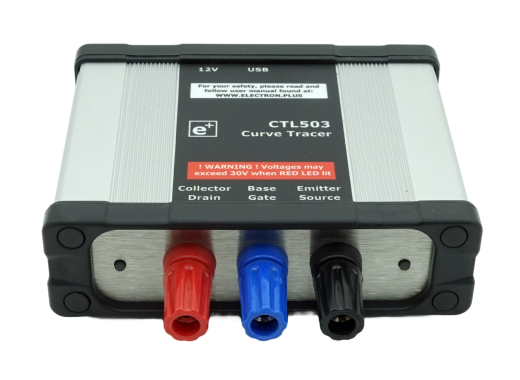

CTL503 curve tracer
Details
The CTL503 curve tracer is an affordable computer controlled measurement system for bipolar transistors, FETs, MOSFETs, diodes, zeners and triacs.
Capable of measuring devices to 100V and upto 3A curve (using base or collector pulsing) as well as much smaller base and collector voltages (multiple collector and base resistor ranges, adjustable peak voltage/current limiters), the CTL503 will trace curves in more useful areas than any other device short of a pair of SMU’s.
Our free software provides control and graphing for many types of curves (Vce vs Ic, Ib vs Ic, hFE, etc..) as well as automatically storing data (CSV) and graphs (PNG) format for detailed analysis and inclusion in reports. Constant development of the PC software keeps increasing the CTL503’s functionality.
Powered via the supplied 12V 1.5A mains adaptor (interchangeable connector for UK, EU, USA/CA and AU/NZ) the CTL503 connects to a PC via USB (cable supplied). Also included is a resistor calibration token (CTL033) and an SMT test token (CTL011).
Compatible with the CS001 ZIF transistor adapter for quick and reliable transistor connection during testing.
Specifications
Step generator
| Steps | 1 to 12 |
| Current mode | 1 μA to 20 mA |
| Voltage mode | -10 V to 10 V |
| Offset function | Yes (for current and voltage modes) |
| Automatic base clamp | Yes |
Collector generator
| Sweep voltage | 0 V to 100 V |
| Peak collector current | 3 A |
| Accuracy | < 1% |
| Connectivity | USB (host/device) |
| Dimensions | 112 x 111 x 35 mm |
| Weight | 300 g |
Accessories
The CTL503 curve tracer comes with:- 1x CTL033 resistor calibration token
- 1x CTL011 SMT test token
Pros and cons
- Measure small base and collector voltages
- Test leads not included
Downloads
| CTL503 curve tracer user manual |  (167.64 KB) | Download |
