This dual channel current probe from NCT instruments is a probe with a large bandwidth of 10 MHz and a sensitivity of 100 mV/A. Both channels are completely isolated from each other so that at the same time a current can be measured with different voltage levels.

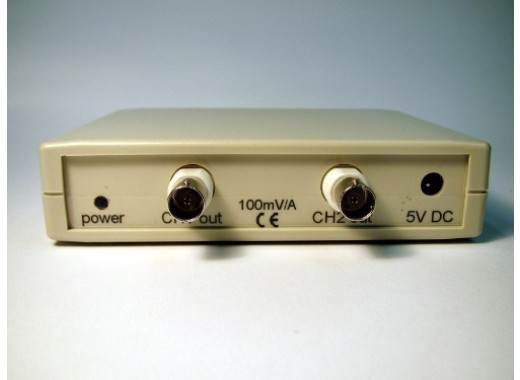

On the front this probe has two 4mm banana plug contacts for each channel. The contacts of a channel are 22 mm apart so you can easily use a BNC to banana adapter. At the back there is a BNC connector and an input for the 5V DC input.
Specifications
| Channels | 2 (Isolated) |
| Max. Current | 10 Arms/18.3 App (40 App for short pulses) |
| Max. Voltage | 2 (Isolated) |
| DC accuracy | 3% + 5 mA |
| DC resistance | 6 mΩ |
| Noise level | 3 mVpeak |
| Sensitivity | 100 mV/A (50 mV/A at 50Ω) |
| Output impedance | 50 Ω |
| Supply current | 2 (Isolated) |
