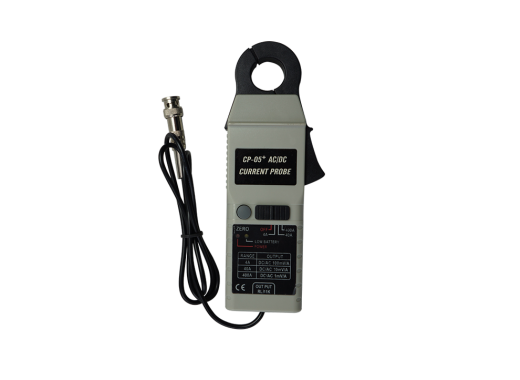

Owon CP-05+ AC/DC Current Probe
Details
The CP-05+ AC/DC current probe by Owon has a large measurement range and bandwidth at a relatively low price. The probe features a high detection accuracy, and a low noise level. Furthermore, the included auto-zero and baseline correction allow for consistent measurements. Finally, the current probe is powered by a 9V battery, and comes with a handy low-battery indicator.
Specifications
| Measurement range | 1 mA - 400 A | |
| Best accuracy DC: AC: | ±2%±5d ±1.5%±5d | |
| Best sensitivity DC/AC: | 1mV/10mA | |
| Bandwidth | DC - 200 kHz | |
| Clamp size | 23 mm (max) | |
| Auto-zero | Yes | |
| Connector | BNC | |
| Power supply | 9V 6F22 Battery | |
| Dimensions | 180 x 30 x 44 mm | |
| Weight | 200 g |
Accessories
The CP-05 comes by default with:- Soft storage bag
Downloads
| Owon CP-05+ Specsheet |  (692.21 KB) | Download |
