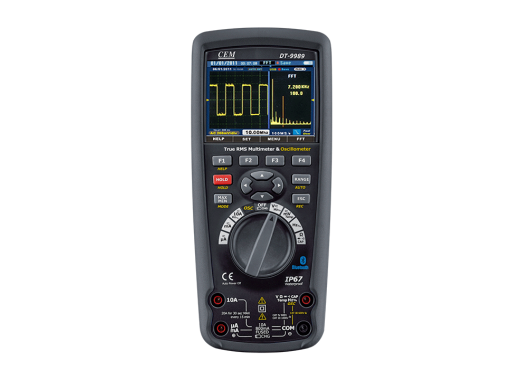

CEM DT-9989 handheld multimeter/oscilloscope
Details
The CEM DT-9989 is an all-in-one digital multimeter. Not only does it contain a multimeter that can measure true-RMS, but it also has an entire oscilloscope function built-in. With an IP67, a CATIII 1000V and a CATIV 600V rating, the meter is very robust. The multimeter can not only measure the common DC and AC voltage/current signals, but it is also suited for frequency, capacitance, resistance, duty cycles, and temperature measurements. However, this multimeter is not only confined to measuring only DC or only AC signals, it can also be used for AC+DC signals. Furthermore, It also supports diode tests, continuity checks, and insulation tests. The oscilloscope part of the meter also includes a peak capture function to detect small pulse details that may be lost with normal sampling techniques. For more information about the measurements, a manual is provided below.
The DT-9989 also comes with software called Meterbox. Meterbox enables cloud storage, cloud computing, and Bluetooth file transfer to other devices such as PCs and smartphones. This is a function which other multimeters simply do not offer. Meterbox enables real-time data-recording, data charting, and data sharing.
This multimeter is one of the more complete multimeters on the market with its wide variety of accessories, durable carrying case, and measuring capabilities.
Multimeter
The specifications for the true-RMS multimeter are given in the table below:
| Range and accuracies | |||||||||||||||||||||||||||||||
| |||||||||||||||||||||||||||||||
| True-RMS | |||||||||||||||||||||||||||||||
| Measurement category | 1 KV CAT III 600 V CAT IV | ||||||||||||||||||||||||||||||
| Counts | 50 000 | ||||||||||||||||||||||||||||||
| Input impedance | >10 MΩ (DC) & >9 MΩ (AC) | ||||||||||||||||||||||||||||||
| Continuity check | < 25Ω | ||||||||||||||||||||||||||||||
Oscilloscope
| Bandwidth | 10 MHz |
| Sample rate | 50 MSa/s |
| Memory depth | 3 Kpts |
| Max. input voltage | 600 V |
| Trigger types | Falling edge, rising edge |
| Input impedance | 1 MΩ // 15 pF |
| Vertical scale | 50 mV/div - 100 V/div |
| Horizontal scale | 250 ns/div - 50 ms/div |
| Vertical resolution | 8 bit |
| Attenuation | 1:1 |
| Rise time | 17.5 ns |
Specifications
| Display | 3.5" 320 x 240 LCD |
| Connectivity | Bluetooth (9600 baud rate) |
| Dimensions | 385 x 290 x 110 mm |
| Weight | 2860 g (case included) |
Accessories
The CEM DT-9989 comes with:
- Test leads with interchangeable tips
- Alligator clips
- 1 probe
- AC adapter
- Bluetooth dongle
- Li-ion batteries
- Type K temperature probe
- Carrying case
Pros and cons
- Lots of accessories
- IP67 rating
- Cloud storage and computing
- Bluetooth data transfer
- Only one attenuation ratio
Downloads
| CEM DT-9989 manual |  (10.78 MB) | Download |
| DT-9989 correct specifications | (144.52 KB) | Download |
