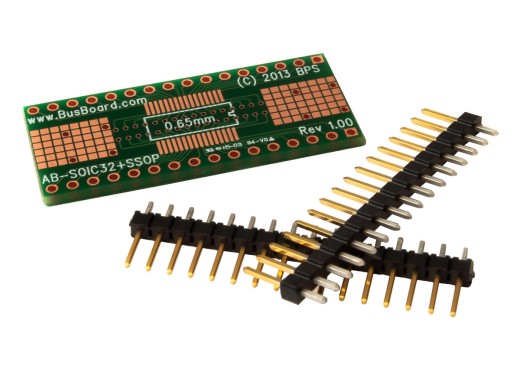

BusBoard AB-SOIC32+SSOP adapter board
Details
The BusBoard AB-SOIC32+SSOP adapter board is a dual-usage adapter since it has a SOIC-32 footprint on the top and a SSOP-32 footprint on the bottom. The board connect SOIC or SSOP integrated circuits to DIP-32 pins to allow them to be used with solderless breadboard or thru-hole prototyping boards. Furthermore, the adapter board contains bonus SMT pads that allow other components to be added on square 0.050" pads and also vias which allow connection to SMT pads on the other side.
Specifications
| Pin pitch | SOIC-32: 0.050" SSOP-32: 0.65 mm |
| Headers | two 1x16 headers |
| Spacing between DIP-32 rows | 0.6" |
| Dimensions | 17.78 x 40.64 x 1.6 mm |
