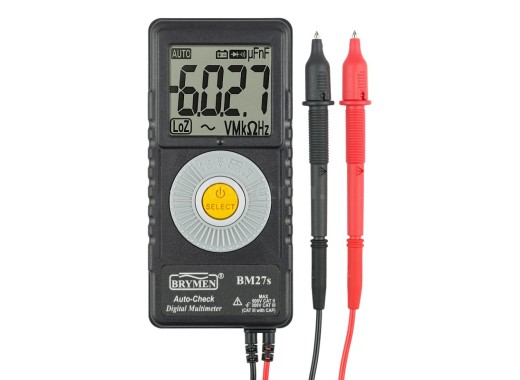

Brymen BM27s multimeter
Details
The Brymen BM27s is a compact budget multimeter that suffices for all basic applications. The BM27s has a Lo-Z mode which makes it possible to prevent 'ghost voltages' during certain measurements.
The BM27s has a pocket size and has a handy rotary knob to select the desired measurement function. On the 6000 count display of this multimeter it is possible to measure DC voltages up to 0.2% accurate. The meter also has a qualitative AutoCheck™ function that automatically switches between DC & AC voltage, resistance, capacity and frequency. The meter is also able to measure line voltages, perform diode tests and measure micro-current.
The meter can be used with the Non-Contact Voltage detector to detect power lines.
Specifications
| Digits / Counts | 3 5⁄6 Digits / 6000 Counts | ||||||||||||||||||||||||||
| Measurement range and accuracy | |||||||||||||||||||||||||||
|
|||||||||||||||||||||||||||
| Overload protection | 570V AC rms & 330V DC | ||||||||||||||||||||||||||
| Automatic stand-by |
Yes
|
||||||||||||||||||||||||||
| Dimensions | 113 x 53 x 10.2 mm | ||||||||||||||||||||||||||
| Weight | 78 g | ||||||||||||||||||||||||||
Accessories
This multimeter comes with:
- 2x Test leads
- User manual
Pros and cons
- Pocket size
- AutoCheck
- EF detection
- 'Only' 6000 counts
Downloads
| Brymen BM20 series (25a, 27s) datasheet |  (886.32 KB) | Download |
| Brymen BM20 series (25a, 27s) manual | (523.23 KB) | Download |
