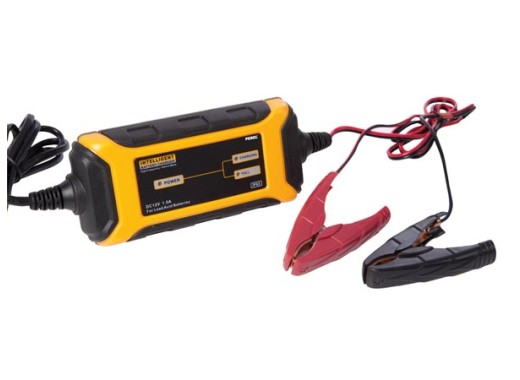

Automatic 12V 1.5A battery charger for lead-acid batteries
Details
Automatic battery charger for 12V and 1.5A lead-acid batteries. The charger has a 3-phase charging cycle. In phase 1 the battery is quickly charged up to 70% with the maximum charging current. In phase 2 the battery is charged up to 90% and the charging current is reduced to a minimum. In this way the internal energy is transferred in an optimal way. In the final stage, the charging current is maintained at a constant level until the battery is fully charged. The charger then stops charging automatically so that the battery is not overloaded.
Specifications
| Output voltage | 12 VDC |
| Output current | 1.5A |
| Nominal current | 0.25 A |
| IP standard | IP65 |
| Dimensions | 72 x 147 x 42 mm |
| Weight | 376 g |
| Cable length | Power cable: 1.5m Charge cable: 1m |
