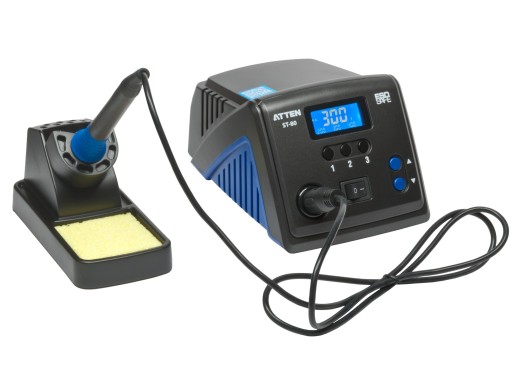

The Atten ST-80 soldering station has a qualitative heating element with 80 Watts of power. The ST-80 comes with a user-friendly LCD display. The soldering station automatically lowers the temperature to 150°C in rest mode. This is done for a longer life of the soldering tip. Furthermore, 3 buttons for adjustable temperature settings are available and it can heat up to 350°C in about 30 seconds. The ST-80 also has a temperature-lock function which enables the user to lock the temperature.
The soldering iron comes with a solderingholder. With 80 Watts of power the tip heats up quite quickly for easy use. The set temperature is accomplished with a 2°C stability. This product comes with a round tip with a tip diameter of 0.2 mm. We have a wide range of other soldering tips, which can be found in the drop-down menu on this page. For this station multiple tips are avaialble.
Power | 80 Watt |
Temperature range | 150 ~ 450 °C |
ESD - safe |
Ja
|
Display | LCD |
Dimensions | 168 x 110 x 95 mm |
Weight | 2.36 kg |
The Atten ST-80 is delivered with
Atten ST-80 datasheet |
(615.3 KB) | Download |
Atten ST-60, ST-80 manual |
(1.3 MB) | Download |
