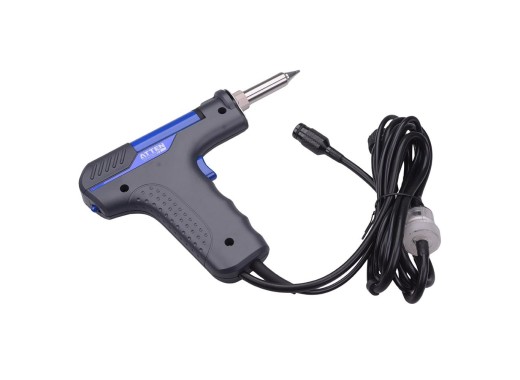

Atten GT-X150 desoldering gun
Details
The Atten GT-X150 is a compact desoldering gun and is suitable for all through-hole desoldering and component removal work. The handpiece reaches 500°C at 150W and draws molten solder away through an integrated suction channel, so joints clear in a single action. Furthermore, this gun accepts the full AT-T151 tip range from 0.8 to 1.6mm, and ships with a T151-1.0I tip fitted.
The gun is compatible with the GT-5150P and GT-5200P desoldering stations, which supply the power, vacuum and temperature control.
Specifications
| Power | 150 W |
| Temperature range | 300 °C - 500 °C |
| Tip to ground resistance/voltage | ≤2 Ω / ≤2 mV |
| Cable length | 120 cm |
| Dimensions | 185 x 40 x 18 mm |
| Weight | 270 g |
Accessories
- T151-1.0I desoldering tip
Pros and cons
- Supplied with a T151-1.0I desoldering tip
- Accepts the full AT-T151 tip range, 0.8 to 1.6mm
- Requires a GT-5150P or GT-5200P station to operate
