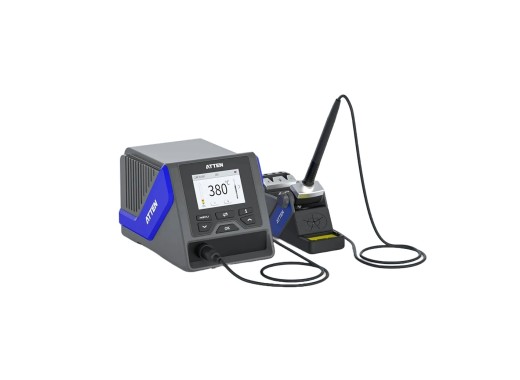

Atten GT-6150P + GT-Y130P soldering station
Details
The Atten GT-6150P + GT-Y130P is a single-channel soldering station supplied with the GT-Y130P soldering iron, which draws up to 130W, and a stand. The soldering station is compatible with various types of soldering tools. See the GT-6150P + GT-N100P for a station that includes soldering tweezers.
The device is easy to operate with the comfortable, big silicone buttons. The soldering station shows multiple different parameter data and information on the graphics display, and it includes 3 groups of shortcuts for temperatures to simplify operation. Furthermore, it has an auto standby and sleep function, password protection, a temperature lock function, and it can automatically recognise the soldering tools and upload the corresponding parameters.
The GT-6150P has an RS-485 communication interface. This can be connected as a host to control a fume extractor during the use of the soldering station.
Are you looking for a soldering station with more power and 2 channels? See the GT-6200P.
Specifications
| Power | 150 W (130 W iron) |
| Temperature range | 80 °C - 500 °C |
| Tip system | Active |
| Tip to ground resistance/voltage | < 2 Ω / < 2 V |
| Automatic standby | Yes |
| Dimensions | 230 x 142 x 145 mm |
| Weight | 3.2 kg |
Accessories
The Atten GT-6150P comes with:- 1x S-19 soldering iron holder
- 1x GT-Y130P soldering handle
- 1x T130-1.0I soldering tip
- 1x 3 mm ground connector
- 1x power cord
Downloads
| Atten GT-6150/6200P user manual |  (2.13 MB) | Download |
