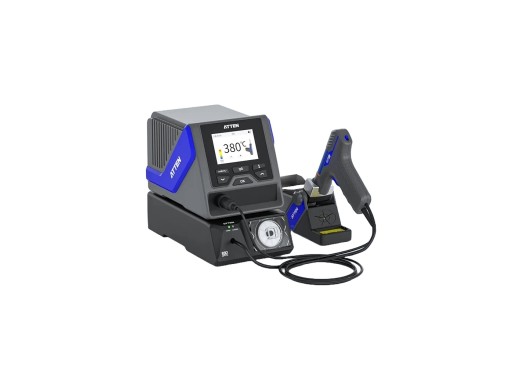

Atten GT-5150P desoldering station
Details
The Atten GT-5150P is a desoldering station with a single-channel suction soldering station with an LCD display. The desoldering station includes a built-in vacuum suction pump and has a power of 150W. The GT-5150P uses integrated soldering tips, has rapid heating and the pluggable heater design is easy to replace. The device is easy to operate with the comfortable silicone buttons and it has 3 sets of shortcut temperatures for easy operation. Furthermore, the desoldering station has an auto standby and sleep function and it has a password protection setting.
The GT-5150P includes the GT-510 negative pressure generator that generates the suction used by the vacuum.
Are you looking for desoldering station with more power and 2 channels, see the GT-5200P. Also, a spare desoldering iron can be purchased here.
Specifications
Desoldering station
| Power | 150 W |
| Temperature range | 250 °C - 480 °C |
| Vacuum pressure | 600 mmHg |
| Nozzle to earth resistance | 2 Ω |
| Automatic standby | Yes |
| Other functions | Password protection |
| Dimensions | 315 x 252 x 127 mm |
| Weight | 4 kg |
Negative pressure generator
| Power | 60 W |
| Vacuum degree | -80 KPa |
| Air flow | 36 L/min |
| Interface | RJ12 |
| Dimensions | 140 x 255 x 70 mm |
| Weight | 1.4 kg |
Accessories
The Atten GT-5150P comes with:- 1x GT-510 negative pressure generator
- 1x S-21 desoldering iron holder
- 1x GT-X150P desoldering gun
- 1x T151-0.8 nozzle
- 1x T151-1.0 nozzle
- 1x T151-1.3 nozzle
- 1x T151-1.6 nozzle
- 2x power cord
- 1x connection line
- 1x grouding wire
- 3x solder suction
- 2x cleaning pin
- 1x twist drill
- 2x O-ring seal
- 10x filter (cotton)
- 10x filter (paper)
- 1x inner pipe (carbon spring)
- 2x pipe front holder
- 1x open-end wrench
- 1x cleaning pin set
