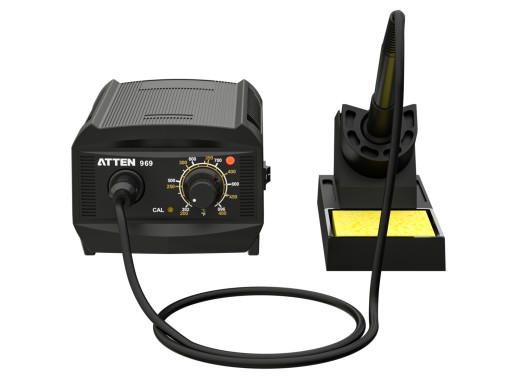

Atten AT-969 soldering station
Details
The Atten AT-969 is an analog 60W soldering station with a ceramic heating element. It features an easily switchable four-core soldering iron (with connector) and a thin, silicone, flexible, heat-resistant soldering cable.
The soldering station comes with all basic accessories needed for soldering which results in AT-969 having a great price-quality ratio.
If you are looking for a similar soldering station with a digital display, see the AT-689.
Soldering
At a power output of 60W, the soldering tip will warm up quickly, with a stability of 2°C to the desired temperature, ensuring comfortable use. The temperature is set by turning the knob to the desired value. Once the desired temperature is reached the red LED in the right-hand corner will start blinking. The standard supplied tip is fine for beginner projects.
Specifications
| Power | 60 W |
| Temperature range | 200 °C - 480 °C |
| Tip system | Passive |
| ESD safe | Yes |
| Tip to ground resistance/voltage | <2 mV |
| Automatic standby | Yes |
| Dimensions | 140 x 115 x 90 mm |
| Weight | 1.7 kg |
Accessories
- Power cord
- Soldering iron handle (AP-61)
- Cleaning sponge
- lron stand
- T900-B conical 0.5mm tip
Pros and cons
- Affordable
- Automatic stand-by
- Easily replaceable heating element
- No display to read the current temperature
Downloads
| AT-969 user manual |  (9.81 MB) | Download |
