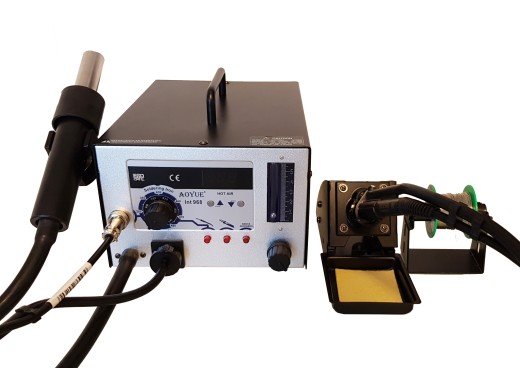

The Aoyue 968 is an all-in-one station. This station is a combination of a hot air station and a soldering station with a diaphragm pump for fume extraction.
The soldering iron temperatures and the hot air are controlled with a microprocessor. The Aoyue 968 features displays to show the values of the airflow, current and desired temperature of both the soldering iron and the hot air. With the fume extraction you will no longer be bothered by the unhealthy soldering fumes. The fumes are extracted directly at the tip level and are filtered in the device.
Specifications
| Hot air station |
| Power | 500 W |
| Temperature range | 100 - 480 ºC |
| Air flow | Max. 23 l/min |
|
| Soldering station |
| Power | 35 W |
| Temperature range | 200 - 480 ºC |
| Heating element | Ceramic |
|
| Fume extraction |
| Pump type | Diaphragm pump |
| Vacuum pressure | 600 mm Hg |
|
| ESD - Safe |
Yes
|
| Tip to ground resistance |
< 2 Ω |
| Weight |
5.25 kg |
| Dimensions |
188 x 126 x 250 mm |
Accessories
The Aoyue 968 is supplied with:
- 3 round nozzles: 3 mm, 5 mm and 9 mm
- BGA nozzle: 12 x 12 mm
- Thin soldering tip (suited for SMD)
- Iron stand including sponge
- 1 spare fume extractor
- IC-popper tool
- English user manual
(332.48 KB)
