The metal holder for the hot-air gun on the side of the device, as shown in the pictures, has been replaced by a plastic holder in the current version.

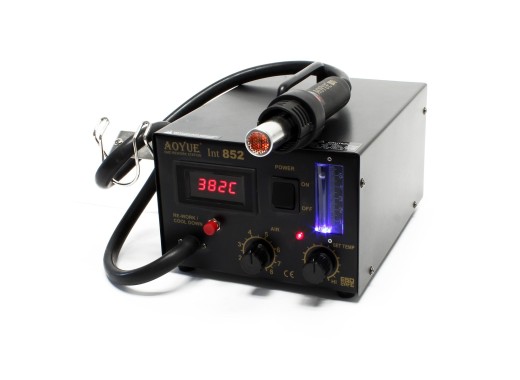

This popular hot air soldering station is perfect for SMD soldering. The temperature and air flow can be controlled with knobs and can be read on the display. The air flow is displayed using a metal ball in a tube. In addition, the station has a stand for the soldering end and it also has a handle to move the device easily. An IC popper is also supplied so that you can start working with the device immediately.
A large variety of nozzles is also available for this hot air station. Four nozzles are standard supplied.
Power | 500 Watt |
Temperature range | 100 °C - 480 °C |
Air flow (max.) | 23 l/min. |
Heating element | Ceramic |
ESD safe. | Yes |
Length air hose | approx. 86 cm |
Dimensions | 187 x 137 x 240 mm |
You can download the user manual of the 852 soldering station here.
Manual 852 |
(404.71 KB) | Download |
