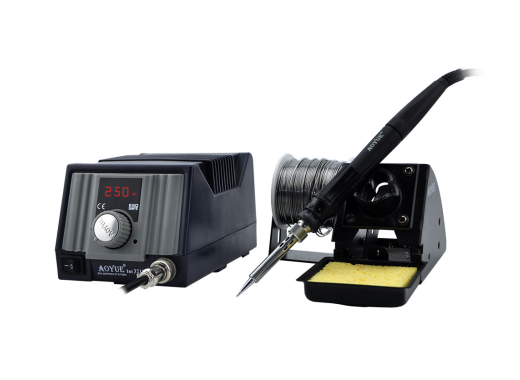

Microprocessor controlled soldering station with 70 Watt of power for jobs where extra power is needed, for example when soldering cables, coils, or components on multi-layer PCBs need to be soldered. The power of 70 watts ensures very short heating time and a wide temperature range.
The temperature of the soldering iron can be adjusted with a large knob. The set and actual temperatures can be read from the clear LED display. The temperature sensor is located in the element and ensures high setting accuracy.
The antistatic, ESD safe, design results in very low risk of static discharges by soldering with this soldering station.
For the soldering station various soldering points are available. For rough work, we recommend a 3.2mm soldering tip.
Power | 70 Watt |
Temperature range | 200 - 480 °C |
Point - earth resistance | < 2 Ω |
Cable spring soldering iron | 1.2 m |
ESD-safe | yes |
Weight (without box) | 1.5 kg |
Dimensions | 110 x 98 x 155 mm |
For more information you can download the manual of the Aoyue 3210
The Aoyue 3210 comes with:
Manual 3210 |
(369.05 KB) | Download |
