Antistatic ESD premium table mats for the workshop

Tip from our expert:

Clean the mat and keep ESD
protection with our mat cleaner.

These ESD mats are of high quality and provide double-layer ESD protection (dissipation / conduction) to prevent static discharges. The surface resistance of the top layer of the mat is between 10⁶ and 10⁹ Ω.

The mats are heat and solder resistant, permanently elastic, wear-resistant and comfortable. The mat is 'anti-glare' and is resistant to chemicals and oil. The corners of the mat are rounded and at two width-corners (short side) the mat has a 10 mm round contact point to connect the mat to a general earth.

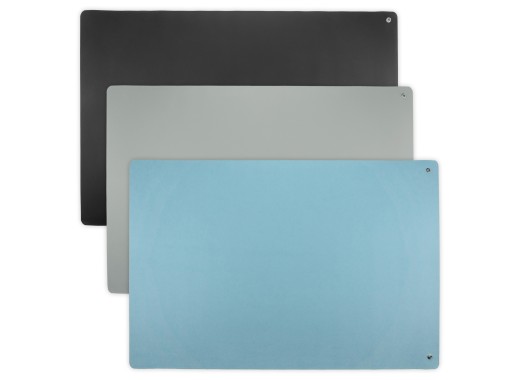

The mats are available in 2 sizes and 3 colours. The dimensions are 600 x 900 mm or 600 x 1200 mm. The colours are grey, blue and black. They are only 2 mm thick.

Specifications

Downloads

ESD table mat datasheet	(728.2 KB)	Download
Cleaning instructions table mats	(268.27 KB)	Download
