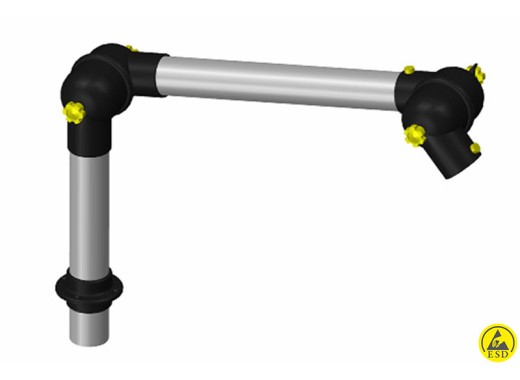

Alsident ESD 50-27-1-6
Details
ESD Extraction arm DN 50
- Mounting: table mounting
- Joints: 2 joints
- Joint colour: black
- Design: ESD safe
- Range = 445 mm
- Air volume max = 85 m³/h
- Recommended airflow 45 to 85 m³/h
- Diameter of tube: Ø50 mm
- Tubes made of chromated TCP Aluminium to assure permanent conductivity
- Joints made of conductive, shatterproof and chemical resistant polypropylene (PP)
- All O-rings maintenance free and conductive
- Integrated valve. When in an open position out of the flow path to maintain the maximum amount of flow
- All threaded stays, springs and thumbscrews made of acid-proof stainless steel (AISI 316L)
- All hoods can be provided with a protective netting (accessory) to reduce the risk of extracting foreign objects
- Approved for ESD-areas according to IEC 61340-5-1
- The extraction arms are equipped with an earth wire with a resistance of 1MΩ
- Dismantling of the arm without tools for cleaning
- All components RoHS-compatible According to directive 2002/95/EC (RoHS)
