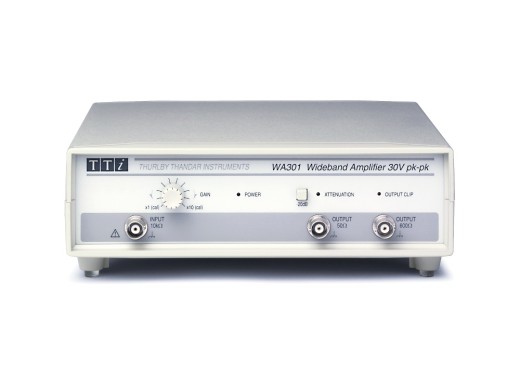

Aim-TTi WA301 function generator amplifier
Details
With this amplifier you can increase the output of your function generator up to 30V pk-pk.
The amplifier runs from 0 to 1 MHz and has an adjustable gain from 1 to 10x. A separate indicator LED shows if the output is attenuated by -20dB and/or when the output clips. Both the input (10kOhm) and the two outputs (50 Ohm and 600 Ohm) are placed at the front in the form of a BNC connector.
The amplifier runs from 0 to 1 MHz and has an adjustable gain from 1 to 10x. A separate indicator LED shows if the output is attenuated by -20dB and/or when the output clips. Both the input (10kOhm) and the two outputs (50 Ohm and 600 Ohm) are placed at the front in the form of a BNC connector.
