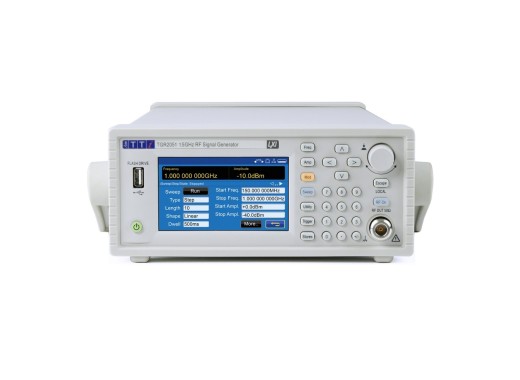

Aim-TTi TGR2051 RF signal generator
Details
The Aim-TTi TGR2051 is a compact, high-performance RF signal generator. It has a bandwidth of up to 1.5GHz and a maximum output power of +13dBm. The TGR2051 comes with a frequency resolution of 10Hz and a high output accuracy of ±0.3dB. The signal generator also has a flat amplitude response of ±0.15dB, resulting in consistent output across the frequency range. The TGR2051 also offers the possibility to modulate AM/FM/PM, and basic pulse modulations such as OOK. It can also perform sweep and modulation simultaneously, allowing for frequency sweeps without interruption. The TGR2051 features USB and LAN interfaces, in addition to the usual analogue output. This enables remote control and programming of the RF signal generator.
Models
| Model | TGR2051 | TGR2053 |
|---|---|---|
| Bandwidth | 150 kHz - 1.5 GHz | 150 kHz - 3.0 GHz |
| Price |
Specifications
| Channels | 1 |
| Frequency resolution | 10 Hz |
| Amplitude resolution | ≤0.1 dB (typical) |
| Amplitude range | -127 dBm up to +13dBm |
| Phase noise | <-124 dBc/Hz (typ.) |
| Modulation | AM, FM, PM, ASK, OOK, FSK, 3FSK, 4FSK, GFSK, MSK, GMSK, HMSK |
| Built-in functions | Sine, Square, Ramp, Triangle, PRBS, user-defined pattern |
| Output impedance | 50 Ω |
| Connectivity | USB, LAN |
| Display | 4.3" TFT LCD (480 x 272) |
| Dimensions | 86.5 x 213.5 x 290 mm |
| Weight | 3 kg |
Accessories
The Aim-TTi TGR2051 is supplied including:
- Power cord
Pros and cons
- Flat amplitude response
- High accuracy
- Can perform sweep and modulation simultaneously
- High-quality and reliable
