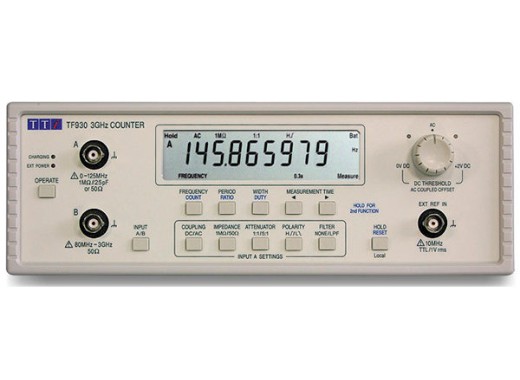

Aim-TTi TF930 frequency counter
Details
This benchtop frequency counter from Aim-TTi is a comprehensive and very affordable counter of professional quality. The large range of this counter makes it very widely usable
and the high precision ensures very accurate measurement results. The counter has a wide range of functions and uses the advanced reciprocal measurement technology which guarantees a high resolution regardless of the
input frequency. For low frequency measurements, the TF930 also has a noise filter.
The TF930 has a very clear 10 digit display and the simple buttons ensure simple and intuitive operation. Furthermore, there is a USB interface with which the counter can be operated remotely and with which
data can be read back.
Specifications
| Input coupling | DC & AC |
| Inputs | BNC A: 0-125 MHz (1MΩ//25pF DC/AC or 50Ω AC) BNC B: 80 MHz-3 GHz (50Ω AC) External Reference Input: 10 MHz (50Ω AC) |
| Frequency range | 0.001 Hz - 3000 MHz |
| Resolution | 0.001 mHz |
| Sensitivity | 15 mVrms |
| Attenuation | 1:1 or 5:1 |
| Display | 10 digit LCD display |
| Functions | Frequency, period, pulse width, duty cycle, frequency ratio, event counting |
| Power supply | Built-in rechargeable batteries, mains adaptor included as well |
| Temperature stability | ± 1ppm |
| Meet time | 0.3, 1, 10, 100s (Update respectively: 0.3, 0.5, 1, 2s) |
| Max. input voltage | 30 Vdc; 30 Vrms; 1 Vrms for frequencies >1MHz |
| Interface | USB, RS232 |
| Dimensions | 260 x 88 x 235 mm |
| Weight | 950g |
